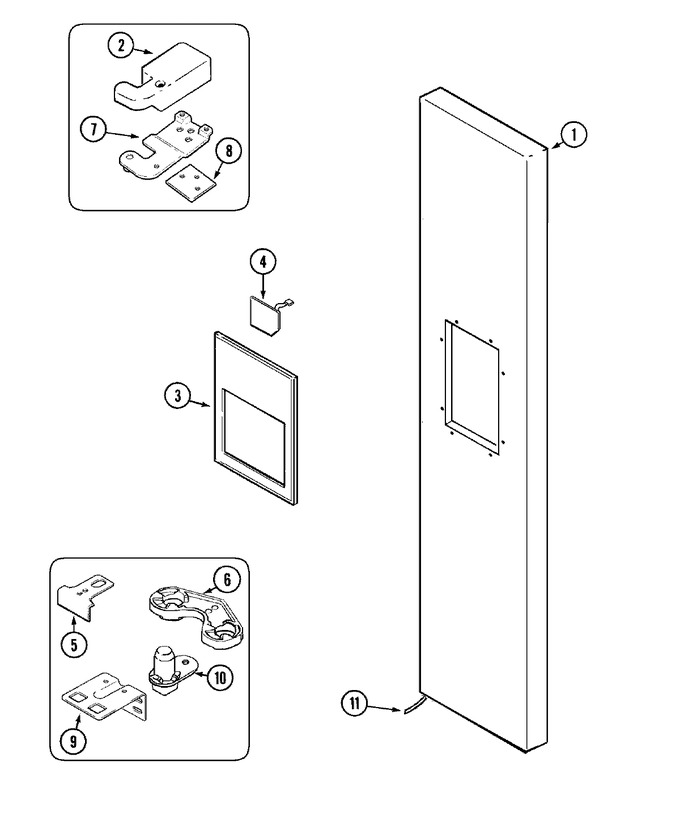

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61004183		Panel, Frz. Door (wht)	10	Appelez-nous	-
2	WP8281196		Screw, Cover   (Replaces: 61004641)	10		Immediately	$ 6.47
2	12001982		Cover, Upper Hinge (wht)   (Replaces: 61004721)	10			$ 56.05
3	61005634		Escutcheon (blk)	10	Appelez-nous	-
3	489392		Screw   (Replaces: 415013-35)	10			$ 12.02
4	61003421		Board, Ftn. Switch	10			$ 163.74
4	61003422		Screw	10	Appelez-nous	-
5	61004120		Stop, Door	10	Appelez-nous	-
5	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
6	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
6	61003647		Closer, Door (natural)	10			$ 10.19
7	61004194		Hinge, Upper	10	Appelez-nous	-
7	WP3-24838-048		Screw   (Replaces: 61004763)	10			$ 7.00
8	61001922		Shim, Upper Hinge	10			$ 0.71
9	3400112		Screw   (Replaces: 61003128)	10			$ 62.96
9	61004712		Hinge, Lower (wht)	10	Appelez-nous	-
10	61003174		Pin, Lower Hinge	10			$ 6.22
11	WP2300868		Union, Reducing (5/16``-5/16``)   (Replaces: 61001614)	10		Immediately	$ 26.15
11	61004569		Tubing, Fountain	10	Appelez-nous	-
