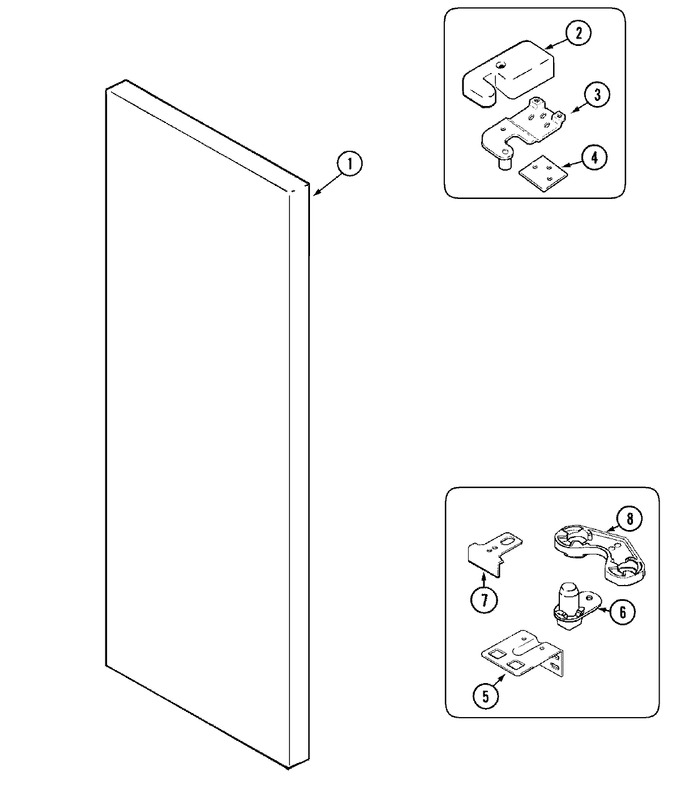

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61005633		Panel, F.f. Door (wht)	10	Appelez-nous	-
2	61004714		Cover, Upper Hinge (wht)	10	Appelez-nous	-
3	WP3-24838-048		Screw   (Replaces: 61004763)	10			$ 7.00
3	61004174		Hinge, Upper	10	Appelez-nous	-
4	61001922		Shim, Upper Hinge	10			$ 0.71
5	61004712		Hinge, Lower (wht)	10	Appelez-nous	-
5	3400112		Screw   (Replaces: 61003128)	10			$ 62.96
6	61003174		Pin, Lower Hinge	10			$ 6.22
7	61004120		Stop, Door	10	Appelez-nous	-
7	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
8	61003647		Closer, Door (natural)	10			$ 10.19
8	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98

    View Diagram in Separate Window       Print Part List
