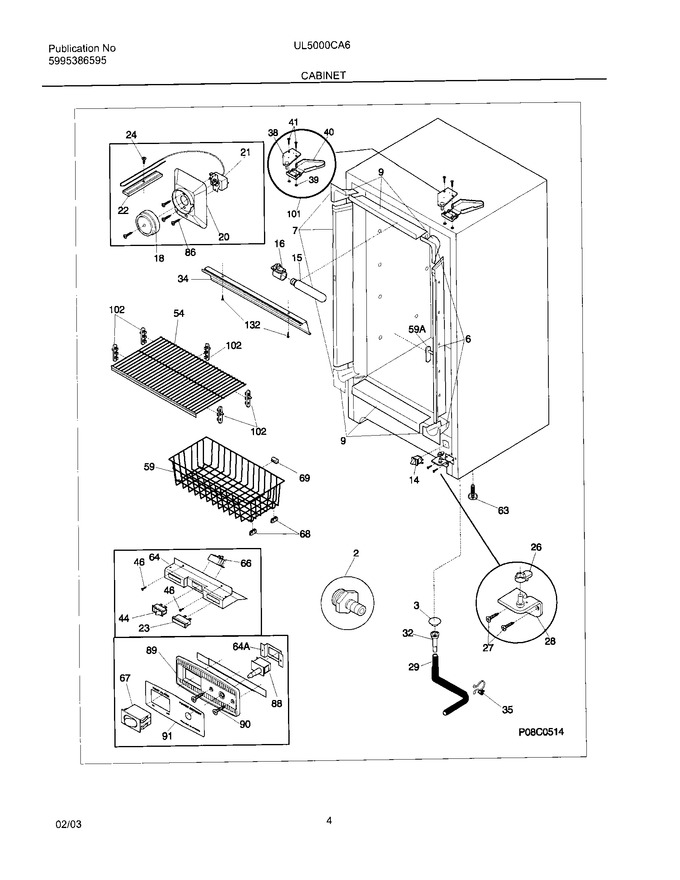

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	216269500		Adapter, Drain Hose				$ 14.81
3	216502600		Plug-drain,interior			Immediately	$ 17.35
6	216604100		Breaker Kit W/corners		Appelez-nous	-
7	216603600		Breaker Kit W/corners,lock Catch		Appelez-nous	-
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
14	216822900		Switch,light/lamp ,ramp			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
18	216707200		Knob,temp Control				$ 44.10
20	216707300		Cover-control Housing		Appelez-nous	-
21	216788200		Control-temperature		Appelez-nous	-
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
23	5308002706		Light-signal,amber				$ 39.11
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
26	216503300		Ramp,door Closer				$ 8.82
27	216313000		Screw,10-24x3/4,hinge		Appelez-nous	-
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304510363		Hose-drain   (Replaces: 216313502)				$ 13.74
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216816206		Shield-light		Appelez-nous	-
35	216273000		Clip, Drain Hose				$ 22.42
38	216808900		Hinge,plate ,top				$ 92.87
39	5303294372		Nut-insert,1/4-20 Unc ,hinge				$ 43.68
40	297164400		Cover-hinge   (Replaces: 216809000)				$ 12.65
41	241710601		Screw   (Replaces: 5303001479)				$ 13.46
44	216823300		Switch-rocker				$ 47.15
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
54	216077201		Shelf-dry				$ 79.17
59	216157200		Basket				$ 102.32
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
64	08016369		Bracket		Appelez-nous	-
66	216713700		Buzzer,alarm				$ 74.60
67	216823200		Switch-rocker,spst		Appelez-nous	-
68	08009560		Glide, Basket				$ 35.25
69	5305878546		Bumper, Basket				$ 7.23
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
88	216380500		Switch-defrost		Appelez-nous	-
89	216206200		Bezel-nameplate,defrost		Appelez-nous	-
90	5303297123		Screw, Th, 8-32 X 2-1/2		Appelez-nous	-
91	216206400		Insert-bezel		Appelez-nous	-
101	216835200		Top Hinge Kit				$ 50.99
102	216486900		Support-shelf				$ 36.59
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
	5303311565		Clip-cable				$ 2.10
	216313300		Plate-tapping, Hinge		Appelez-nous	-
	09948773		Insulation, Drain Tube				$ 12.60
	08037401		Retainer, Wire, Breaker				$ 2.85
59A	216486500		Stop-basket				$ 20.58
64A	216009200		Bracket-dfr Switch		Appelez-nous	-
