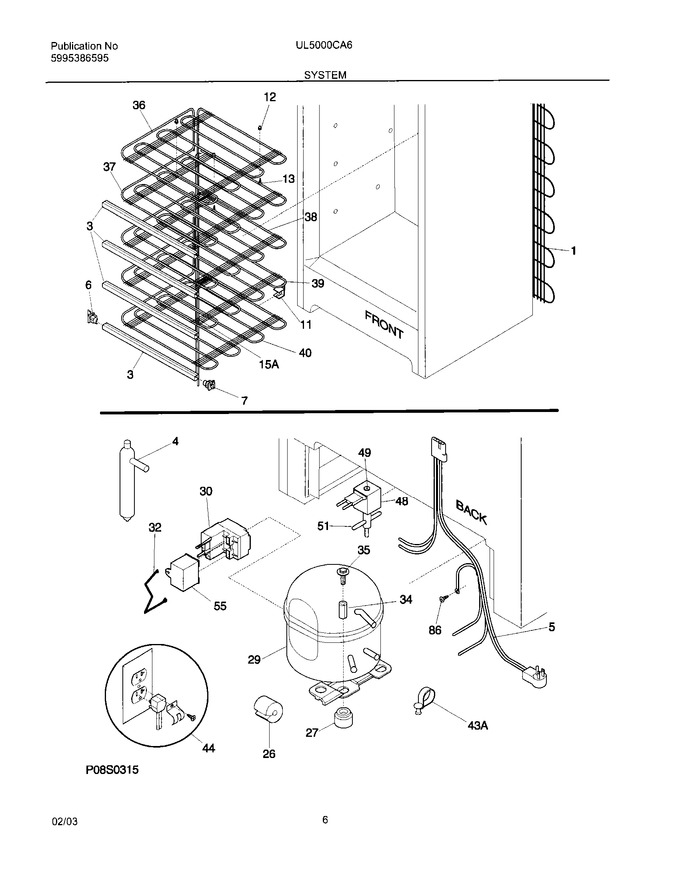

SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
3	5304509723		Trim-shelf,evaporator   (Replaces: 216847806)				$ 31.81
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
5	216804400		Harness-main		Appelez-nous	-
6	297001600		Support-shelf,front Lh   (Replaces: 3091418)				$ 18.08
7	297001500		Support, Shelf, Front Rh   (Replaces: 08037928)				$ 18.08
11	216474600		Support-rear Shelf				$ 16.55
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
26	216511900		Spacer-tube		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
29	5304511982		Compressor,w/o Electricals   (Replaces: 216851700)				$ 492.32
30	5304491584		Controller   (Replaces: 216649318)			Immediately	$ 101.35
32	216649100		Clamp,elec Cont Mtg ,compressor				$ 12.50
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
36	5304506302		Grid-top Evaporator   (Replaces: 216070900)				$ 324.59
37	216160100		Shelf-top Evaporator		Appelez-nous	-
38	216071100		Shelf-middle Evaporator		Appelez-nous	-
39	5304506302		Shelf-third Evaporator   (Replaces: 216071200)				$ 324.59
40	5304506302		Shelf-bottom Evaporator   (Replaces: 216071300)				$ 324.59
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
48	216799800		Solenoid		Appelez-nous	-
49	216730000		Screw-solenoid				$ 5.36
51	216750500		Valve-formed				$ 158.71
55	218909912		Capacitor,run ,50/60 Hz ,220 Vac ,12 Microfarad   (Replaces: 216787800)			Immediately	$ 74.75
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
	09950610		Clip		Appelez-nous	-
	5303208622		Clip Grounding		Appelez-nous	-
	216762300		Harness,int		Appelez-nous	-
	216533400		Wire-ground,solenoid		Appelez-nous	-
	216502500		Sleeve,suction Line				$ 10.85
15A	216468300		Heat Exchanger				$ 237.67
43A	216629700		Clip-harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
