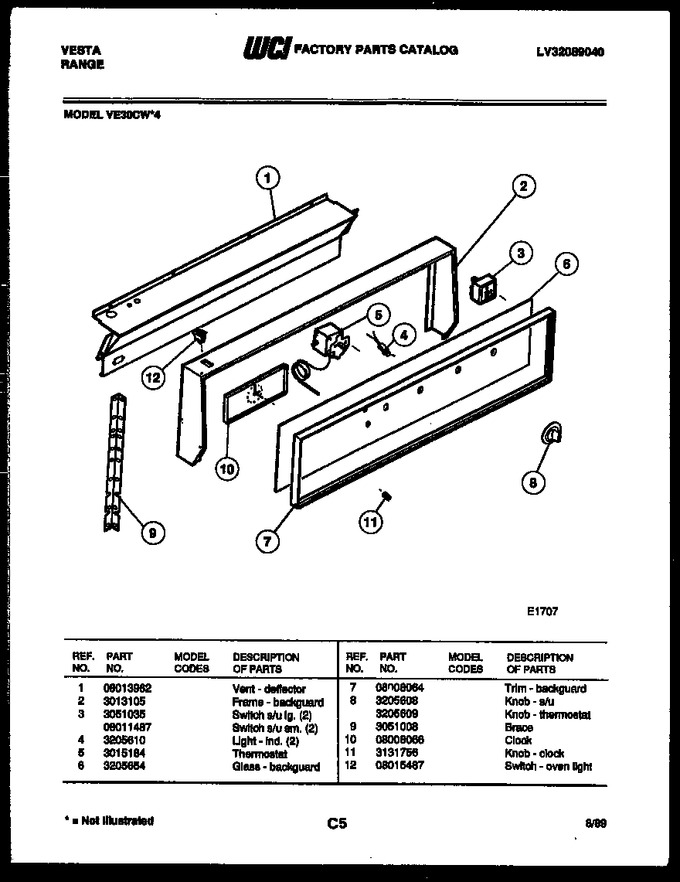

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08013962 | Vent - Deflector |
|
- | |||||
| 2 | 3013105 | Frame-backguard |
|
- | |||||
| 3 | 3051035 | Switch S/u Lg. (2) |
|
- | |||||
| 4 | 3205610 | Light - Ind (2) |
|
- | |||||
| 5 | 3015184 | Thermostat |
|
- | |||||
| 6 | 3205654 | Glass - Backguard |
|
- | |||||
| 7 | 08008064 | Trim Backguard |
|
- | |||||
| 8 | 3205608 | Knob - S/u |
|
- | |||||
| 9 | 3051008 | Brace |
|
- | |||||
| 10 | 08008066 | Clock |
|
- | |||||
| 11 | 3131756 | Knob - Clock |
|
- | |||||
| 12 | 08015487 | Switch - Oven Light |
|
- | |||||
| 3A | 08011487 | Switch-s/u Sm (2) |
|
- | |||||
| 8A | 3205609 | Knob - Thermostat |
|
- |
