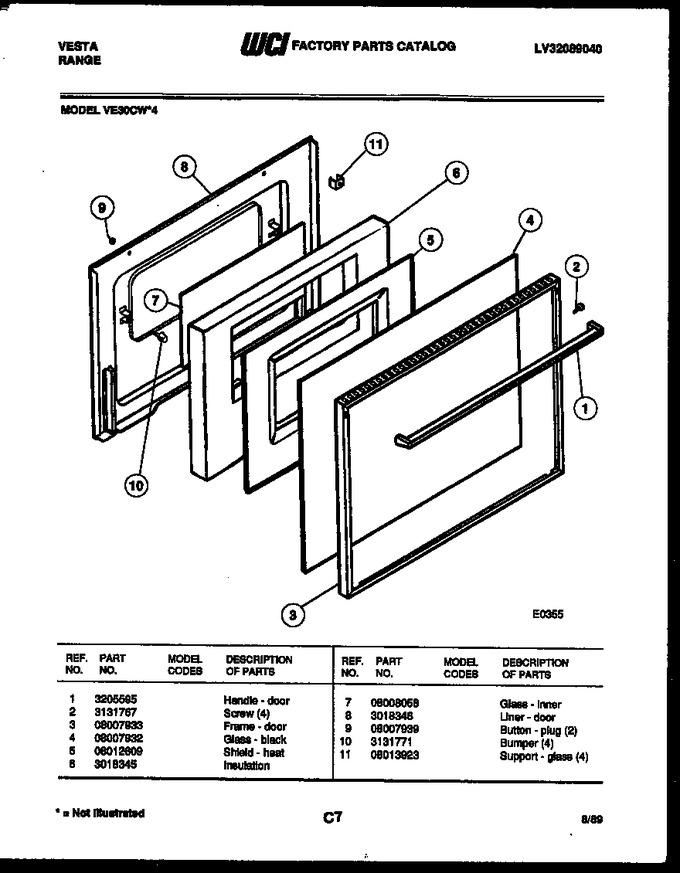

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205595 | Handle - Door |
|
- | |||||
| 2 | 3131767 | Screw (4) |
|
- | |||||
| 3 | 08007933 | Frame - Door |
|
- | |||||
| 4 | 08007932 | Glass - Black |
|
- | |||||
| 5 | 08012609 | Shield-heat |
|
- | |||||
| 6 | 3018345 | Insulation |
|
- | |||||
| 7 | 08008058 | Glass-inner |
|
- | |||||
| 8 | 3018346 | Liner - Door |
|
- | |||||
| 9 | 08007939 | Button-plug (2) |
|
- | |||||
| 10 | 3131771 | Bumper (4) |
|
- | |||||
| 11 | 08013923 | Support-glass (4) |
|
- |
