SELECT A DIAGRAM

02 - Cabinet

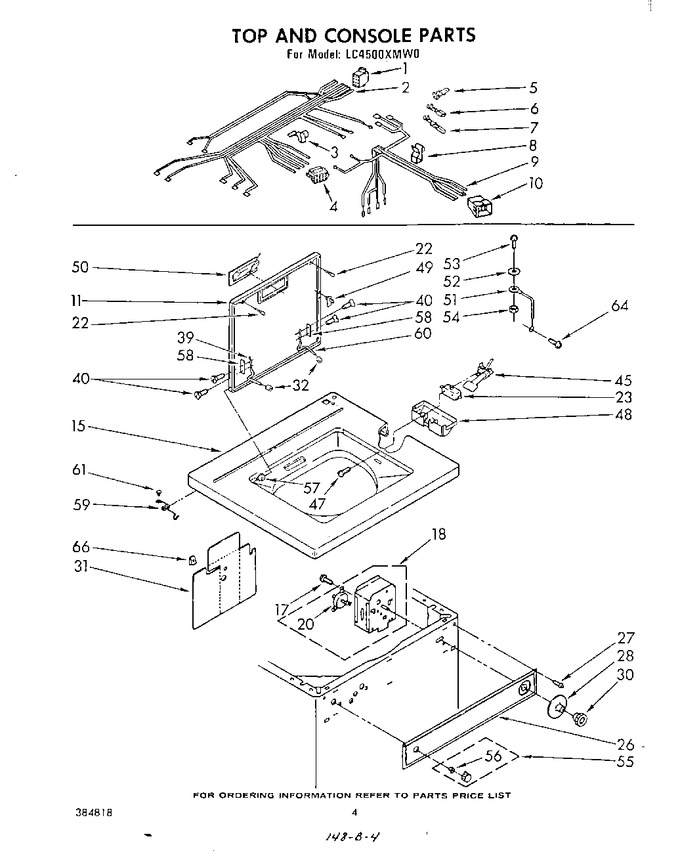

03 - Top And Console


04 - Drive


05 - Water Pump


06 - Tub And Basket


07 - Gearcase


08 - Basket Drive And Brake


09 - Miscellaneous , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	94611		Plug, Terminal		Appelez-nous	-
2	380781		Harness, Upper		Appelez-nous	-
3	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.19
4	W10876590		Disconnect Block, Timer   (Replaces: 352089)				$ 11.48
5	352088		Terminal (use W/352089)				$ 5.83
6	WP94614		Terminal (use W/94611)   (Replaces: 94614)				$ 6.90
7	94613		Terminal (use W/94612)		Appelez-nous	-
8	356327		Clip, Harness		Appelez-nous	-
9	358099		Harness, Lower		Appelez-nous	-
10	94612		Cap, Terminal		Appelez-nous	-
11	385580		Lid (golden Harvest)		Appelez-nous	-
11	385577		Lid (almond)		Appelez-nous	-
11	385576		Lid (white)		Appelez-nous	-
15	384210		Top (almond Model)		Appelez-nous	-
15	384213		Top (golden Harvest)		Appelez-nous	-
15	WP384693		Top (white Model)   (Replaces: 384209)				$ 274.65
17	WP356418		Screw, Timer Mounting (2)   (Replaces: 96435)				$ 7.13
18	385358		Timer, 60 Hz. (mallory)		Appelez-nous	-
20	365941		Motor, Timer		Appelez-nous	-
22	80011		Bumper, Front Lid (2)   (Replaces: 384475)			Immediately	$ 8.98
23	W10820036		Switch, Lid (alt.)   (Replaces: 364091)			Immediately	$ 27.45
23	00-6163		Switch, Lid (alt.)   (Replaces: 364090)				$ 22.92
23	W10820036		Switch, Lid   (Replaces: 660308)			Immediately	$ 27.45
23	W10820036		Switch, Lid (alt.)   (Replaces: 367034)			Immediately	$ 27.45
26	375543		Panel, Control		Appelez-nous	-
27	694024		Rivet, Plastic (2)		Appelez-nous	-
28	385526		Dial, Timer		Appelez-nous	-
30	356500		Knob, Timer		Appelez-nous	-
31	357901		Shield, Timer		Appelez-nous	-
32	19119		Bumper, Lid Hinge (1)				$ 5.75
39	384458		Hinge, Lid (l.h.)				$ 76.11
40	WPW10119828		Screw, Hinge Mounting   (Replaces: 18724)			Immediately	$ 6.47
45	357347		Switch Actuator Assembly		Appelez-nous	-
47	354764		Screw And Washer		Appelez-nous	-
48	WP359231		Shield, Lid Switch   (Replaces: 354289)				$ 7.58
49	WP358684		Strike, Lid Switch   (Replaces: 357913)			Immediately	$ 6.90
50	379885		Handle, Lid (almond)		Appelez-nous	-
50	379884		Handle, Lid (white)		Appelez-nous	-
50	379888		Handle, Lid (golden Harvest)		Appelez-nous	-
51	368715		Wire, Ground		Appelez-nous	-
52	90918		Washer		Appelez-nous	-
53	WP308544		Screw, 10-24 X 1/2   (Replaces: 274707)			Immediately	$ 6.98
54	W10080180		Nut, 10-24   (Replaces: 271166)				$ 12.13
55	370269		Control Knob Assembly		Appelez-nous	-
56	599530307		Clip   (Replaces: 90015)		Appelez-nous	-
57	WP21258		Bearing, Hinge (2)   (Replaces: 21258)			Immediately	$ 6.87
58	WP21097		Pad, Hinge (2)   (Replaces: 21097)				$ 7.02
59	384461		Spring, Lid (includes Illus. 61) (r.h.)		Appelez-nous	-
59	384460		Spring, Lid (includes Illus. 61) (l.h.)		Appelez-nous	-
60	384459		Hinge, Lid (r.h.)				$ 76.63
61	54690		Plug, Button		Appelez-nous	-
64	WP488234		Screw, 8-32 X 5/16   (Replaces: 9412221)				$ 6.07
66	356288		Clip, Push-on		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
