SELECT A DIAGRAM

02 - Cabinet


03 - Top And Console

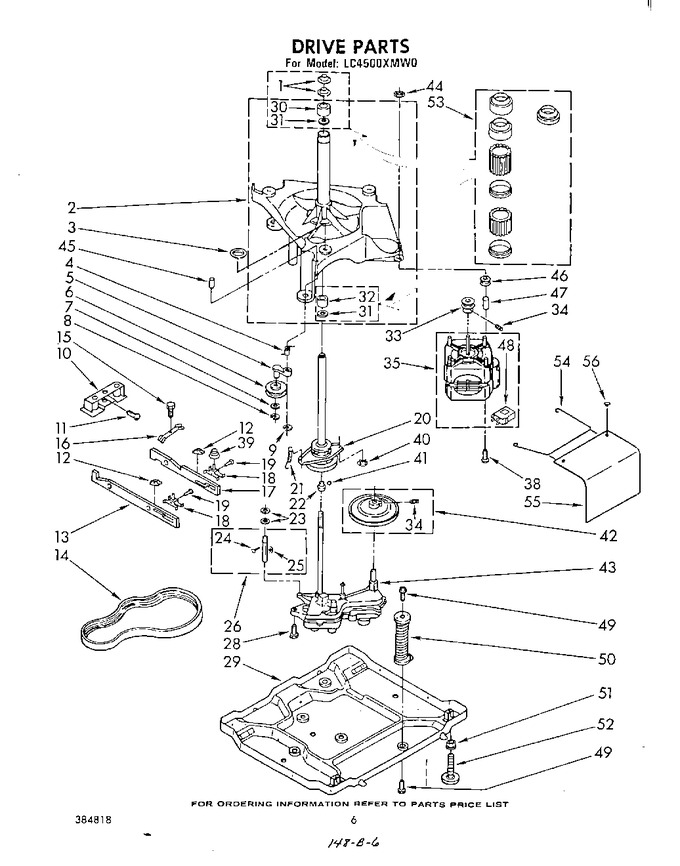

04 - Drive


05 - Water Pump


06 - Tub And Basket


07 - Gearcase


08 - Basket Drive And Brake


09 - Miscellaneous , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8577376		Seal, Centerpost (2)   (Replaces: 356934)			Immediately	$ 6.47
2	359179		Baseplate & Centerpost		Appelez-nous	-
3	17235		Gasket, Tub (3)				$ 249.30
4	356137		Spring, Idler Arm		Appelez-nous	-
5	366856		Idler Arm & Shaft		Appelez-nous	-
6	366855		Pulley, Idler		Appelez-nous	-
7	356133		Washer, Thrust		Appelez-nous	-
8	356087		Ring, Retainer		Appelez-nous	-
9	356088		Ring, Retainer		Appelez-nous	-
10	365998		Magnet		Appelez-nous	-
11	16135		Screw, Taper End		Appelez-nous	-
12	95462		Guide, Cam Bar		Appelez-nous	-
13	350532		Cam, Bar Spin   (Replaces: 354838)		Appelez-nous	-
14	660373		Belt, ``v``		Appelez-nous	-
14	356402		Belt, ``v`` (alternate)		Appelez-nous	-
14	356403		Belt, ``v`` (alt.)		Appelez-nous	-
15	98001		Screw, 1/4-28 X 1/2		Appelez-nous	-
16	94726		Spring, Brake		Appelez-nous	-
17	18642		Cam, Agitator & Pump				$ 24.51
18	84866		Plunger		Appelez-nous	-
19	354959		Rivet		Appelez-nous	-
20	383932		Basket Drive & Brake (refer To Page 10 For Further Breakdown)   (Replaces: 359175)		Appelez-nous	-
21	17261		Spring, Brake Yoke		Appelez-nous	-
22	358586		Support, Spin Tube		Appelez-nous	-
23	90315		Washer (2)		Appelez-nous	-
24	90532		Pin, Roll		Appelez-nous	-
25	92119		Roller, Basket Clutch Shaft		Appelez-nous	-
26	359460		Shaft, Basket Clutch		Appelez-nous	-
28	356154		Screw & Washer (3)		Appelez-nous	-
29	359322		Baseplate, Lower		Appelez-nous	-
30	356993		Bearing, Upper		Appelez-nous	-
31	W11095997		Seal, Shaft (2)   (Replaces: 359449)			Immediately	$ 20.07
32	354195		Bearing, Lower		Appelez-nous	-
33	356939		Pulley, Motor		Appelez-nous	-
34	355345		Setscrew, 5/16-18 X 1/2				$ 5.04
35	362857		Motor, 60 Hz. (alt.) (general Electric)		Appelez-nous	-
35	358589		Motor, 60 Hz. (alt.) (emerson)		Appelez-nous	-
35	660303		Motor, 60 Hz.		Appelez-nous	-
38	WP3390631		Screw, Motor Ground   (Replaces: 9420601)				$ 7.04
39	358354		Spring, Agitator Plunger		Appelez-nous	-
40	356444		Retainer, Brake Yoke				$ 5.33
41	358585		Ball		Appelez-nous	-
42	356155		Pulley, Main Drive		Appelez-nous	-
43	359279		Gearcase (refer To Page 9 For Further Breakdown)		Appelez-nous	-
44	98023		Nut, Motor Mounting (4)		Appelez-nous	-
45	356638		Sleeve, Cabinet Support (2)		Appelez-nous	-
46	356322		Grommet, Motor (4)		Appelez-nous	-
47	W10491983		Cap, Motor Stud (2)   (Replaces: 359702)		Appelez-nous	-
48	362738		Switch, Motor Start (use W/emerson Motor)		Appelez-nous	-
48	168A5775BNP1		Switch, Motor Start ((use W/general Electric Motor))   (Replaces: 359642)				$ 28.88
49	425583		Screw & Washer (6)		Appelez-nous	-
50	367011		Spring & Dampener (no. 1)		Appelez-nous	-
50	367012		Spring & Dampener (no. 3)		Appelez-nous	-
50	367013		Spring & Dampener (no. 2)		Appelez-nous	-
51	359304		Nut, Flange (4)		Appelez-nous	-
52	WPW10001130		Feet (4)   (Replaces: 775526)			Immediately	$ 7.02
53	285136		Centerpost Bearing Kit (includes Illus. 1, 30, 31 & 32)		Appelez-nous	-
54	357622		Support, Splash Shield		Appelez-nous	-
55	357623		Shield, Splash		Appelez-nous	-
56	356288		Clip, Push-on (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
