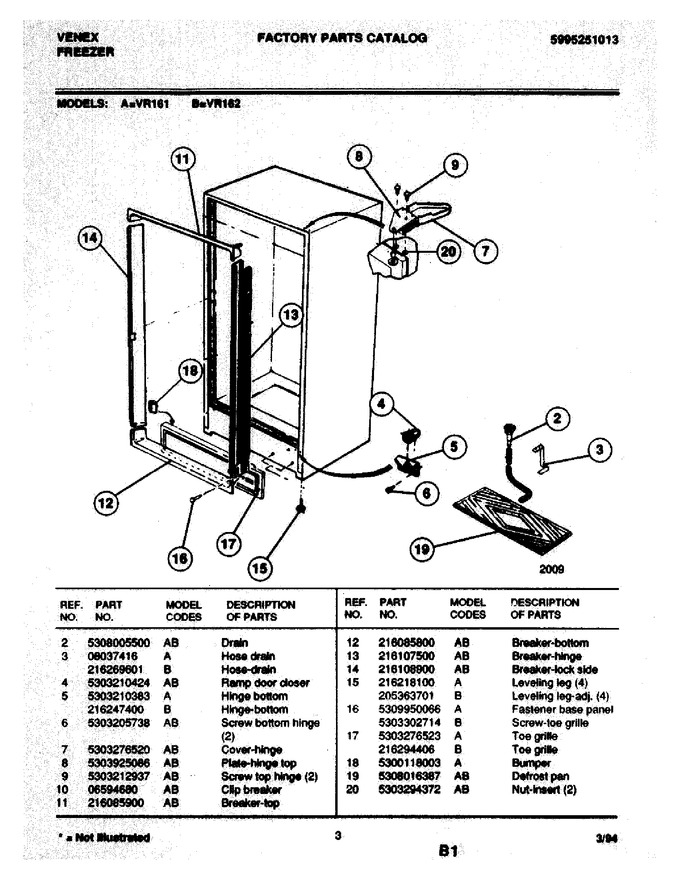

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
3	08037416		Hose, Drain		Appelez-nous	-
4	5303210424		Ramp, Door Closer		Appelez-nous	-
5	5303210383		Hinge, Bottom		Appelez-nous	-
6	154518001		Screw-bottom Hinge   (Replaces: 5303205738)				$ 10.54
7	5303276520		Cover-hinge		Appelez-nous	-
8	5303925086		Plate-hinge Top		Appelez-nous	-
9	5303212937		Screw-top Hinge (2)		Appelez-nous	-
10	06594680		Clip, Breaker		Appelez-nous	-
11	216085900		Breaker, Top		Appelez-nous	-
12	216085800		Breaker, Bottom		Appelez-nous	-
13	216107500		Breaker Hinge		Appelez-nous	-
14	216108900		Breaker,lock Side		Appelez-nous	-
15	216218100		Leveling Leg (4)				$ 25.25
16	5309950066		Fastener Base Panel		Appelez-nous	-
17	5303276523		Panel Toe Plate		Appelez-nous	-
18	5300118003		Bumper		Appelez-nous	-
19	5308016387		Defrost Pan		Appelez-nous	-
20	5303294372		Nut-insert (2)				$ 43.68
