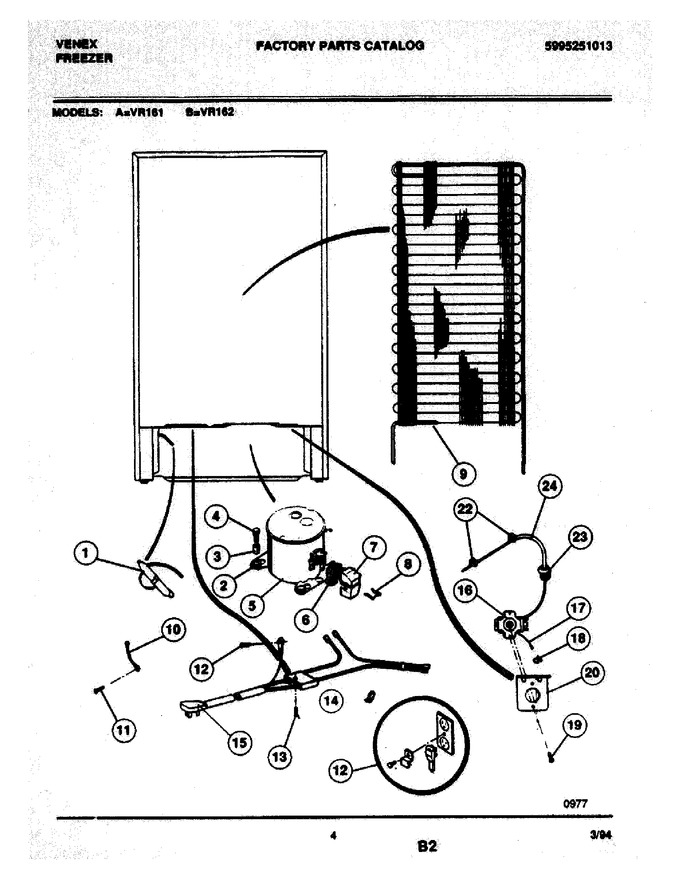

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303305677		Drier-filter   (Replaces: 5308000027)			Immediately	$ 31.67
2	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
3	5306594529		Sleeve Compressor (3)				$ 10.34
4	5303272328		Screw-compressor (3)				$ 10.34
5	216162000		Compressor		Appelez-nous	-
6	5303200841		Overload/relay		Appelez-nous	-
7	216200500		Cover,relay		Appelez-nous	-
8	08016584		Clamp Cover		Appelez-nous	-
9	5300083897		Condenser				$ 538.37
10	5303301497		Wire,ground		Appelez-nous	-
11	08037851		Screw Grounding				$ 3.57
13	08009384		Screw Strain Relief		Appelez-nous	-
14	09950610		Clip		Appelez-nous	-
15	5303273525		Wiring Harness, Turntable		Appelez-nous	-
16	216055600		Control-temperature		Appelez-nous	-
18	5303208622		Clip Grounding		Appelez-nous	-
19	08003539		Screw Control To Bracket		Appelez-nous	-
20	216010301		Brkt Cold Control		Appelez-nous	-
22	216010400		Support-control Cap Tube		Appelez-nous	-
23	3200805		Plug Cap Tube		Appelez-nous	-
24	5303916855		Sleeve-plastic Tube				$ 60.96
