Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303925098		Insulation 1/2``x 2``				$ 120.65
5	3205376		Insulation 1``x 5``		Appelez-nous	-
7	216218100		Leveling Leg				$ 25.25
16	216084200		Panel-evaporator		Appelez-nous	-
17	06599546		Spacer-support, Evaporator		Appelez-nous	-
19	08009611		Insert Nut		Appelez-nous	-
20	216283900		Screw-support		Appelez-nous	-
21	131168200		Screw, Evap Cover			Immediately	$ 14.18
25	216503100		Screen, Drain   (Replaces: 5308037403)				$ 62.17
26	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
27	216269601		Hose-drain		Appelez-nous	-
28	06594637		Clip		Appelez-nous	-
29	5308016387		Pan-defrost		Appelez-nous	-
34	5303294372		Nut-insert (2)				$ 43.68
35	5300091170		Reinforcement, Door Stop		Appelez-nous	-
36	5303210383		Hinge, Bottom		Appelez-nous	-
37	154518001		Screw-bottom Hinge   (Replaces: 5303205738)				$ 10.54
38	5303276520		Cover-hinge, Black		Appelez-nous	-
39	5303212935		Plate-hinge Top		Appelez-nous	-
40	08037937		Spacer Top Breaker		Appelez-nous	-
40	5303212937		Screw-top Hinge		Appelez-nous	-
46	06594680		Clip, Breaker		Appelez-nous	-
47	216685900		Harness-lid/defrost		Appelez-nous	-
48	216085800		Breaker, Bottom		Appelez-nous	-
49	216107500		Breaker, Hinge Side		Appelez-nous	-
50	216107600		Breaker, Lock Side		Appelez-nous	-
74	5309950066		Pin Base Trim		Appelez-nous	-
75	5303276523		Panel Toe Plate		Appelez-nous	-
76	5300118003		Bumper		Appelez-nous	-

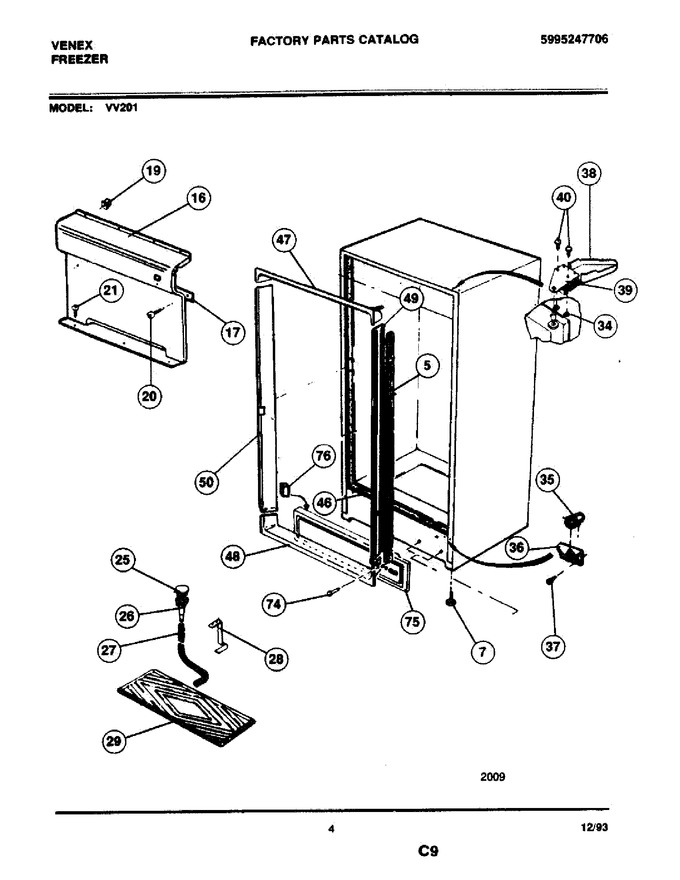

    View Diagram in Separate Window       Print Part List
