Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP285170 Collar Kit, Faucet Coupler   (Replaces: 285170) In-Stock Immediately $ 64.29

2 285171 Valve, Pressure Relief Appelez-nous -
3 359607 Coupler & Hose Appelez-nous -
7 WP3351614 Screw, 10 X 3/8   (Replaces: 90864) In-Stock Immediately $ 6.26

8 WP356138 Clamp, Hose   (Replaces: 356138) In-Stock Immediately $ 7.67

9 356499 Bracket, Hose Storage Special Order $ 32.28

10 353885 Barrier, Splash Appelez-nous -
14 356211 Box, Power Cord Appelez-nous -
16 WP596669 Clamp, Hose   (Replaces: 272845) In-Stock Immediately $ 7.56

17 356314 Hose, Water Inlet Appelez-nous -
18 98520 Screw Appelez-nous -
19 370865 Switch, Water Level Appelez-nous -
20 357174 Bracket, Control Appelez-nous -
22 356727 Hose, Drain Appelez-nous -
23 WP16123 Washer   (Replaces: 16123) Special Order $ 6.93

25 356606 Hinge, Cabinet (2) Appelez-nous -
28 370910 Cabinet (white) Appelez-nous -
28 376950 Cabinet (almond) Appelez-nous -
28 376951 Cabinet (coffee) Appelez-nous -
28 376952 Cabinet (new Avocado) Appelez-nous -
28 376953 Cabinet (golden Harvest) Appelez-nous -
29 9426223 Screw, 10-16 X 1 Appelez-nous -
30 357043 Spacer, Cabinet (2) Appelez-nous -
31 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

32 WP356363 Siphon Break   (Replaces: 356363) In-Stock Immediately $ 7.19

33 WP616099 Clamp, Hose   (Replaces: 272861) In-Stock Immediately $ 7.03

34 WP356471 Cap, Siphon Break   (Replaces: 356471) Special Order $ 6.98

35 357500 Power, Cord Appelez-nous -
36 WP96160 Screen, Filter   (Replaces: 96160) Special Order $ 10.54

37 356231 Housing, Power Cord Appelez-nous -
39 357048 Hose, Water Inlet Appelez-nous -
40 WP273556 Screw, 10-12 X 5/8   (Replaces: 273556) In-Stock Immediately $ 7.04

42 356982 Bracket Appelez-nous -
43 285805 Valve, Water Mixing (serviced Only As A Complete Assembly)   (Replaces: 358992) In-Stock Immediately $ 49.57

44 357171 Clamp, Hose Appelez-nous -
45 W11213338 Connector, Hose   (Replaces: 356739) Special Order $ 63.54

46 WP285655 Clamp, Hose   (Replaces: 353097) In-Stock Immediately $ 7.55

47 356887 Spring, Hose Retaining Appelez-nous -
48 357504 Bracket, Harness Appelez-nous -
50 356917 Pad, Top (r.h.) Appelez-nous -
50 356916 Pad, Top (l.h.) Appelez-nous -
51 356422 Lock, Front Top Appelez-nous -
52 WP98997 Clip   (Replaces: 98997) Special Order $ 9.98

53 356649 Clip Appelez-nous -
54 WP596669 Clamp, Hose   (Replaces: 353367) In-Stock Immediately $ 7.56

55 356397 Hose, Pump To Filter Appelez-nous -
56 353094 Clamp, Hose Appelez-nous -
57 WP488234 Screw   (Replaces: 9412221) Special Order $ 6.07

58 370145 Switch, Water Temperature Appelez-nous -
59 70136 Cap, Pipe   (Replaces: 356054) In-Stock Immediately $ 3.17

60 356746 Clip, Condesner Special Order $ 19.03

61 357499 Relief, Strain Appelez-nous -
62 357469 Clip Appelez-nous -
63 18849 Pad, Top Hinge Special Order $ 18.13

65 WP596669 Clamp, Hose   (Replaces: 371501) In-Stock Immediately $ 7.56


    View Diagram in Separate Window     Print Icon   Print Part List

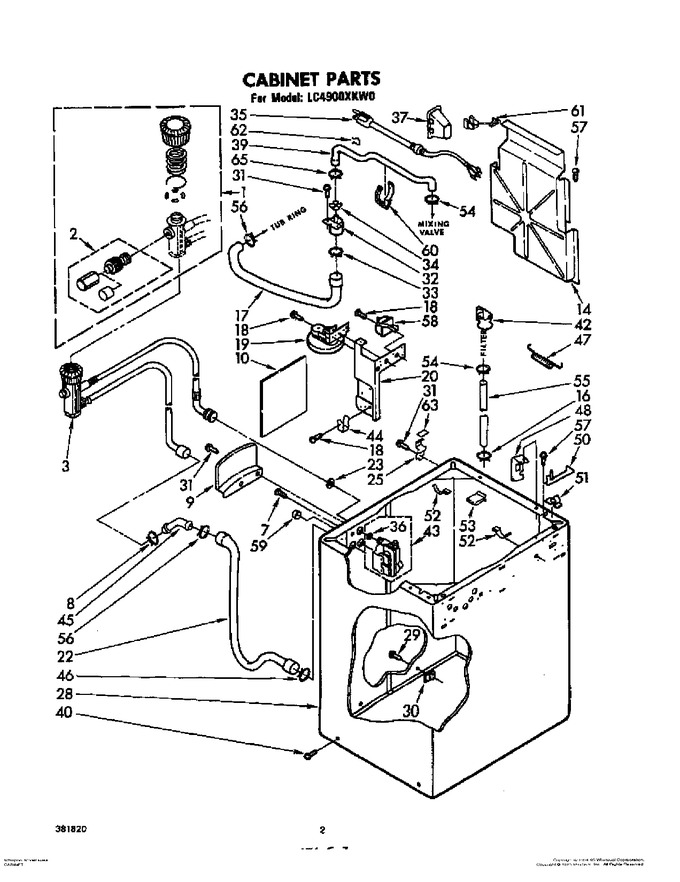

Diagram for LC4900XKW0
