SELECT A DIAGRAM

02 - Cabinet

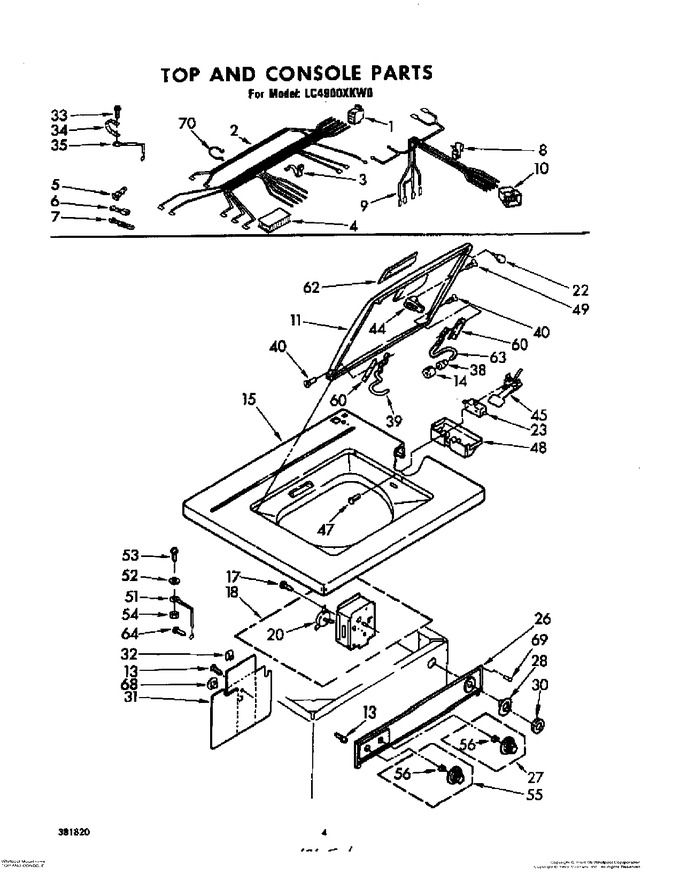

03 - Top And Console


04 - Drive


05 - Water Pump


06 - Tub And Basket


07 - Optional Permanent Installation Kit


08 - Gearcase


09 - Basket Drive And Brake


10 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	94611		Plug, Terminal		Appelez-nous	-
2	380780		Harness, Upper		Appelez-nous	-
3	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.19
4	W10876590		Disconnect Block, Timer   (Replaces: 352089)				$ 11.48
5	352088		Terminal (use W/352089)				$ 5.83
6	WP94614		Terminal (use W/94611)   (Replaces: 94614)				$ 6.90
7	94613		Terminal (use W/94612)		Appelez-nous	-
8	356327		Clip, Harness		Appelez-nous	-
9	358100		Harness, Lower		Appelez-nous	-
10	94612		Cap, Terminal		Appelez-nous	-
11	379980		Lid (almond)		Appelez-nous	-
11	379982		Lid (new Avocado)		Appelez-nous	-
11	379981		Lid (coffee)		Appelez-nous	-
11	379979		Lid (white)		Appelez-nous	-
11	379983		Lid (golden Harvest)		Appelez-nous	-
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
14	19119		Bumper, Lid Hinge				$ 5.75
15	376910		Top (almond)		Appelez-nous	-
15	376913		Top (golden Harvest)		Appelez-nous	-
15	376912		Top (new Avocado)		Appelez-nous	-
15	373723		Top (white)		Appelez-nous	-
15	376911		Top (coffee)		Appelez-nous	-
17	WP356418		Screw, Timer Mounting   (Replaces: 356690)				$ 7.13
18	385359CP		Timer, Disconnect   (Replaces: 359139)		Appelez-nous	-
20	365941		Motor, Timer		Appelez-nous	-
22	WP9724509		Bumper (2)   (Replaces: 93770)			Immediately	$ 7.14
23	W10820036		Switch (alternate)   (Replaces: 367034)			Immediately	$ 27.45
23	W10820036		Switch (alternate)   (Replaces: 364091)			Immediately	$ 27.45
23	00-6163		Switch (alternate)   (Replaces: 364090)				$ 22.92
26	375542		Panel, Control		Appelez-nous	-
27	370269		Knob, Assembly Water Temperature		Appelez-nous	-
28	359916		Dial, Timer		Appelez-nous	-
30	356500		Knob, Timer		Appelez-nous	-
31	357901		Shield, Timer		Appelez-nous	-
32	356387		Clip		Appelez-nous	-
33	132848		Screw, 10-24 X 1		Appelez-nous	-
34	22965		Strap, Ground		Appelez-nous	-
35	364089		Wire, Ground		Appelez-nous	-
38	WP21258		Bearing, Hinge   (Replaces: 21258)			Immediately	$ 6.87
39	WP54584		Hinge, Lid (l.h.)   (Replaces: 54584)				$ 30.09
40	WPW10119828		Screw, Hinge Mounting   (Replaces: 18724)			Immediately	$ 6.47
44	357633		Strike, Lid Switch		Appelez-nous	-
45	357347		Switch Actuator Assembly		Appelez-nous	-
47	354764		Screw & Washer		Appelez-nous	-
48	WP359231		Shield, Lid Switch   (Replaces: 354289)				$ 7.58
49	354975		Screw And Washer		Appelez-nous	-
51	368715		Wire, Ground		Appelez-nous	-
52	90918		Washer		Appelez-nous	-
53	WP308544		Screw, 10-24 X 1/2   (Replaces: 274707)			Immediately	$ 6.98
54	W10080180		Nut, 10-24   (Replaces: 271166)				$ 12.13
55	367675		Knob Assembly, Water Level		Appelez-nous	-
56	599530307		Clip Timer   (Replaces: 90015)		Appelez-nous	-
60	WP21097		Pad, Hinge   (Replaces: 21097)				$ 7.02
62	379888		Golden Harvest		Appelez-nous	-
62	379884		White		Appelez-nous	-
62	379885		Almond		Appelez-nous	-
62	379886		Coffee		Appelez-nous	-
62	379887		New Avocado		Appelez-nous	-
63	WP91770		Hinge, Lid (r.h.)   (Replaces: 91770)				$ 24.71
64	WP488234		Screw, 10 X 3/8   (Replaces: 9412221)				$ 6.07
68	356288		Clip, Push-on (2)		Appelez-nous	-
69	356388		Rivet, Plastic		Appelez-nous	-
70	357469		Clip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
