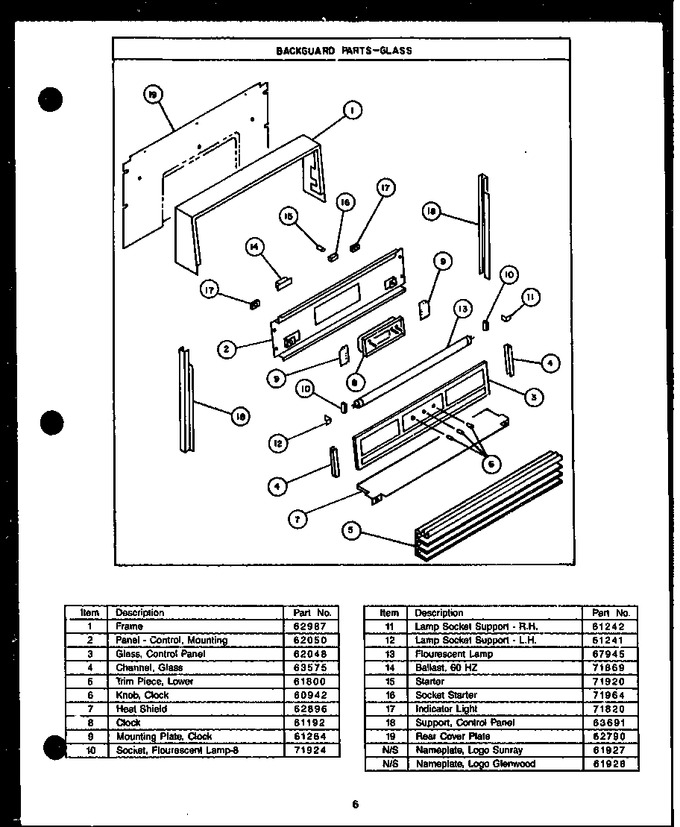

01 - Backguard Parts-glass


02 - Gas Parts


03 - Lower Oven Cabinet Assy


04 - Lower Oven Electrical Components


05 - Lower Storage Drawer


06 - Oven Door Parts


07 - Page 1


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y62987		Frame		Appelez-nous	-
2	Y62050		Panel - Control, Mounting		Appelez-nous	-
3	Y62048		Glass, Control Panel		Appelez-nous	-
4	Y63575		Channel, Glass		Appelez-nous	-
5	61800		Assy,wiring Harness				$ 2.88
6	60942		Knob, Clock				$ 33.44
7	Y62896		Heat Shield		Appelez-nous	-
8	61192		Clock				$ 175.27
9	Y61264		Mounting Plate, Clock		Appelez-nous	-
10	71924		Socket, Flourescent Lamp-8		Appelez-nous	-
11	61242		Lamp Socket Support - R.h.		Appelez-nous	-
12	61241		Lamp Socket Support - L.h.		Appelez-nous	-
13	WPY0067945		Lamp, Fluorescent   (Replaces: 67945)				$ 29.33
14	71869		Ballast		Appelez-nous	-
15	71920		Starter		Appelez-nous	-
16	Y71964		Socket Starter		Appelez-nous	-
17	Y71820		Indicator Light		Appelez-nous	-
18	Y63691		Support, Control Panel		Appelez-nous	-
19	Y62790		Rear Cover Plate		Appelez-nous	-
NI	61927		Heater Assembly			Immediately	$ 127.58
NI	61928		Heater Assembly 208v				$ 142.52
