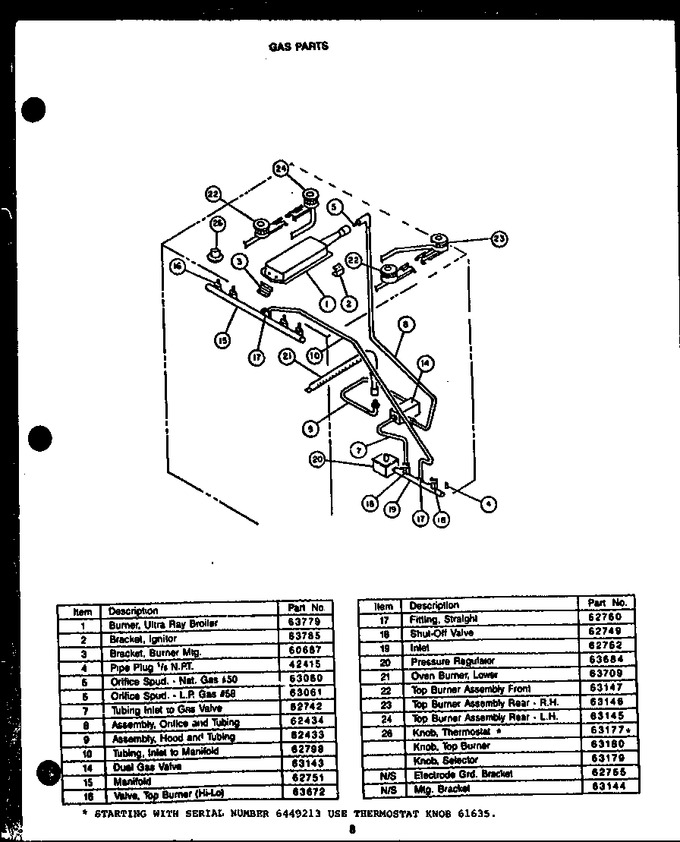

02 - Gas Parts


03 - Lower Oven Cabinet Assy


04 - Lower Oven Electrical Components


05 - Lower Storage Drawer


06 - Oven Door Parts


07 - Page 1


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y63779		Burner, Ultra Ray Broiler		Appelez-nous	-
2	63785		Bracket, Ignitor		Appelez-nous	-
3	Y60687		Bracket, Burner Mounting		Appelez-nous	-
4	0042415		Pipe Plug 1/8-27 Npt		Appelez-nous	-
5	Y63061		Orifce Spud, L.p.		Appelez-nous	-
5	Y63060		Orifice Spud, Natural		Appelez-nous	-
7	Y62742		Tubing Inlet To Gas Valve		Appelez-nous	-
8	DE81-02347A		Assembly, Orifice And Tubing   (Replaces: 62434)				$ 142.24
9	62433		Assembly, Hood And Tubing		Appelez-nous	-
10	Y62798		Tubing, Inlet To Manifold		Appelez-nous	-
14	63143		Dual Gas Valve		Appelez-nous	-
15	62751		Mainifold				$ 163.97
16	63672		Valve, Top Burner		Appelez-nous	-
17	Y62760		Fitting, Manifold		Appelez-nous	-
18	Y62749		Shut-off Valve		Appelez-nous	-
19	Y62762		Inlet		Appelez-nous	-
20	Y63684		Pressure Regulator		Appelez-nous	-
21	63709		Oven Burner		Appelez-nous	-
22	63147		Top Burner Assembly Front		Appelez-nous	-
23	63146		Top Burner Assembly Rear - R.h		Appelez-nous	-
24	63145		Top Burner Assembly Rear - L.h		Appelez-nous	-
26	Y63179		Knob, Selector		Appelez-nous	-
26	63177		Knob, Thermostat		Appelez-nous	-
26	Y63180		Knob, Top Burner		Appelez-nous	-
NI	63144		Mtg. Bracket		Appelez-nous	-
NI	Y62755		Electrode Grd. Bracket		Appelez-nous	-
