SELECT A DIAGRAM

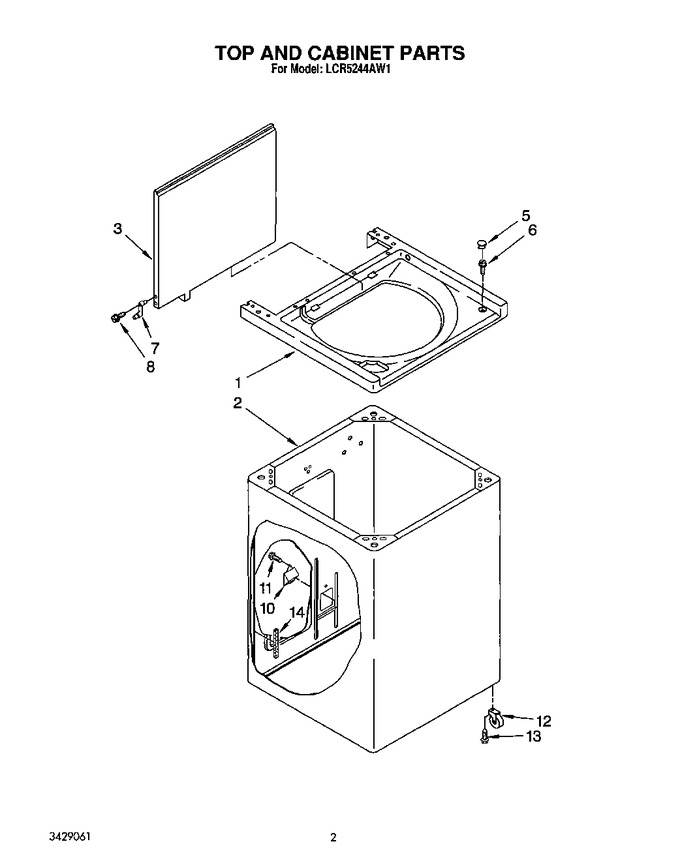

02 - Top And Cabinet, Lit/optional


03 - Controls And Rear Panel


04 - Agitator, Basket And Tub


05 - Miscellaneous


06 - Brake, Clutch, Gearcase, Motor And Pump


07 - Suspension


08 - Wiring Harness


09 - Water System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3428551		Top (almond)		Appelez-nous	-
1	3428550		Top (white)		Appelez-nous	-
2	3429969		Cabinet (white)		Appelez-nous	-
2	3429970		Cabinet (almond)		Appelez-nous	-
3	3430199		Lid (almond)		Appelez-nous	-
3	3430198		Lid (white)		Appelez-nous	-
5	3429565		Bumper, Lid (almond)		Appelez-nous	-
5	3428720		Bumper, Lid (white)		Appelez-nous	-
6	3429941		Screw, Top To Cabinet (2)		Appelez-nous	-
7	3428543		Hinge, Lid (2)		Appelez-nous	-
8	3430073		Screw, Lid Hinge Mounting (2)		Appelez-nous	-
10	3428525		Cover, Pump		Appelez-nous	-
11	3428014		Screw		Appelez-nous	-
12	3429406		Caster (4)		Appelez-nous	-
13	3934148		Screw		Appelez-nous	-
14	3429705		Protector, Edge		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
	WP384496		Coupling, Hose   (Replaces: 384496)				$ 77.48
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Almond (uncut)		Appelez-nous	-
	285677		Portable To Fixed   (Replaces: 3430190)				$ 177.66
	695570		Dryer Stack Stand		Appelez-nous	-
	345994		Wall Mount		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
	LIT3429274		Sheet, Installation Instructions		Appelez-nous	-
	LIT3429026		Guide, Use And Care		Appelez-nous	-
	LIT3429493		Energy Guide		Appelez-nous	-
	LIT3934180		Label, Wiring Diagram		Appelez-nous	-
	LIT3429061		List, Repair Parts		Appelez-nous	-
	350941		Leveler (thinner)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
