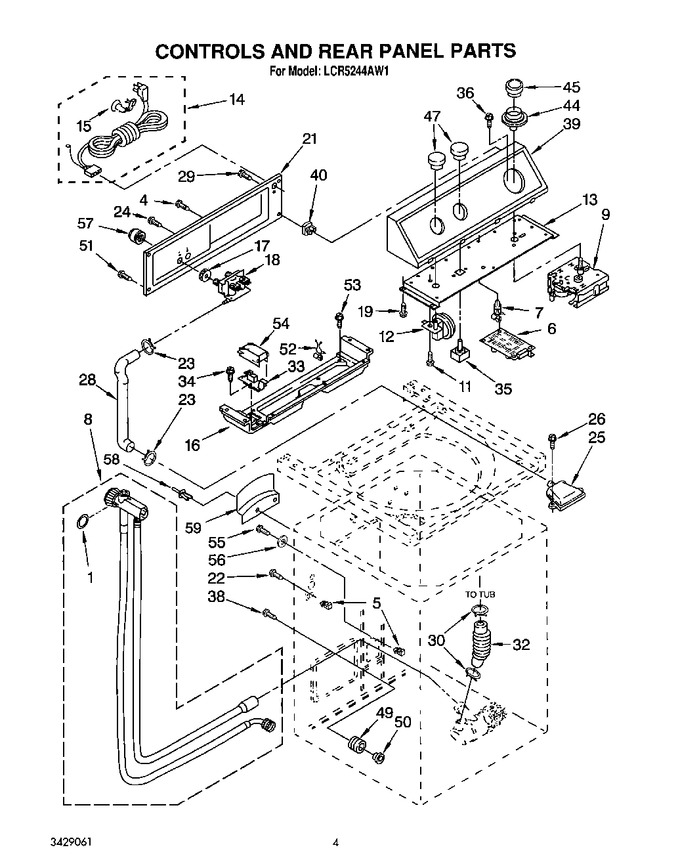

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP910218 | Seal (Replaces: 711696) |
|
Immediately | $ 9.05 | ||||
| 4 | 3429189 | Screw, Console Cover (4) |
|
- | |||||
| 5 | 3428879 | Clip, Harness |
|
- | |||||
| 6 | 3429904 | Board, Control |
|
- | |||||
| 7 | 3428718 | Stand Off, Small (2) |
|
- | |||||
| 7 | 3430082 | Stand Off, Large (2) |
|
- | |||||
| 8 | W10849778 | Hose Coupler Assembly (includes Item No.1) (Replaces: 3430161) |
|
$ 271.76 | |||||
| 9 | 3430177 | Timer, Control (60 Hz.) |
|
- | |||||
| 11 | WP3400872 | Screw, Switch Mtg. (Replaces: 3934035) |
|
$ 6.95 | |||||
| 12 | 3429610 | Switch, Water Level |
|
- | |||||
| 13 | 3428848 | Bracket, Control |
|
- | |||||
| 14 | 3429399 | Cord, Power |
|
- | |||||
| 15 | W11733005 | Strain Relief, Power Cord (Replaces: 63848) |
|
$ 11.64 | |||||
| 16 | 3428370 | Pan, Console |
|
- | |||||
| 17 | WP96160 | Screen, Filter (2) (Replaces: 96160) |
|
$ 10.54 | |||||
| 18 | 3430029 | Valve, Water Mixing |
|
- | |||||
| 19 | WP3400872 | Screw (Replaces: 3429682) |
|
$ 6.95 | |||||
| 21 | 3428365 | Cover, Console Rear |
|
- | |||||
| 22 | WP3351614 | Screw, Power Cord Ground (Replaces: 3428971) |
|
Immediately | $ 6.26 | ||||
| 23 | WP596669 | Clamp, Hose (2) (Replaces: 371501) |
|
Immediately | $ 7.56 | ||||
| 24 | WP3351614 | Screw, Mixing Valve Mtg. (2) (Replaces: 3428971) |
|
Immediately | $ 6.26 | ||||
| 25 | 3429918 | Water Inlet (lower) |
|
- | |||||
| 25 | 3429917 | Water Inlet (upper) |
|
- | |||||
| 26 | 3934040 | Screw, Water Inlet Mtg. (2) |
|
- | |||||
| 28 | 3430030 | Hose, Valve To Water Inlet |
|
- | |||||
| 29 | WP3351614 | Screw, Ground (Replaces: 3428971) |
|
Immediately | $ 6.26 | ||||
| 30 | WP616099 | Clamp, Hose (Replaces: 370448) |
|
Immediately | $ 7.03 | ||||
| 32 | 3429900 | Hose, Pump To Tub |
|
$ 22.54 | |||||
| 33 | 3934247 | Switch, Lid |
|
- | |||||
| 34 | WP3400872 | Screw, Switch Mounting (2) (Replaces: 3429682) |
|
$ 6.95 | |||||
| 35 | 3429541 | Switch, Water Temperature |
|
- | |||||
| 36 | WP3428970 | Screw, Timer Mounting (2) (Replaces: 3428970) |
|
$ 9.82 | |||||
| 38 | 3428934 | Screw, Pump Mtg. (2) |
|
- | |||||
| 39 | 3430210 | Panel, Console (includes Inlay) (white) |
|
- | |||||
| 39 | 3430211 | Panel, Console (includes Inlay) (almond) |
|
- | |||||
| 40 | 689559 | Nut, Push-in (4) |
|
- | |||||
| 44 | 3388185 | Blade, Timer Knob |
|
$ 30.54 | |||||
| 45 | 3392698 | Knob, Timer |
|
- | |||||
| 47 | 3430129 | Knob, Control |
|
- | |||||
| 49 | 3428526 | Grommet, Pump (3) |
|
- | |||||
| 50 | 3428933 | Spacer, Pump (3) |
|
- | |||||
| 51 | 3429942 | Screw |
|
- | |||||
| 52 | 3429534 | Clip, Coil (2) |
|
- | |||||
| 53 | 3429941 | Screw |
|
- | |||||
| 54 | 3429706 | Shield, Lid Switch |
|
- | |||||
| 55 | 3428014 | Screw |
|
- | |||||
| 56 | 3429923 | Washer |
|
- | |||||
| 57 | 70136 | Cap, Threaded (Replaces: 356054) |
|
Immediately | $ 3.17 | ||||
| 58 | 3430186 | Rivet |
|
- | |||||
| 59 | 356499 | Bracket, Hose Storage |
|
$ 32.28 |
