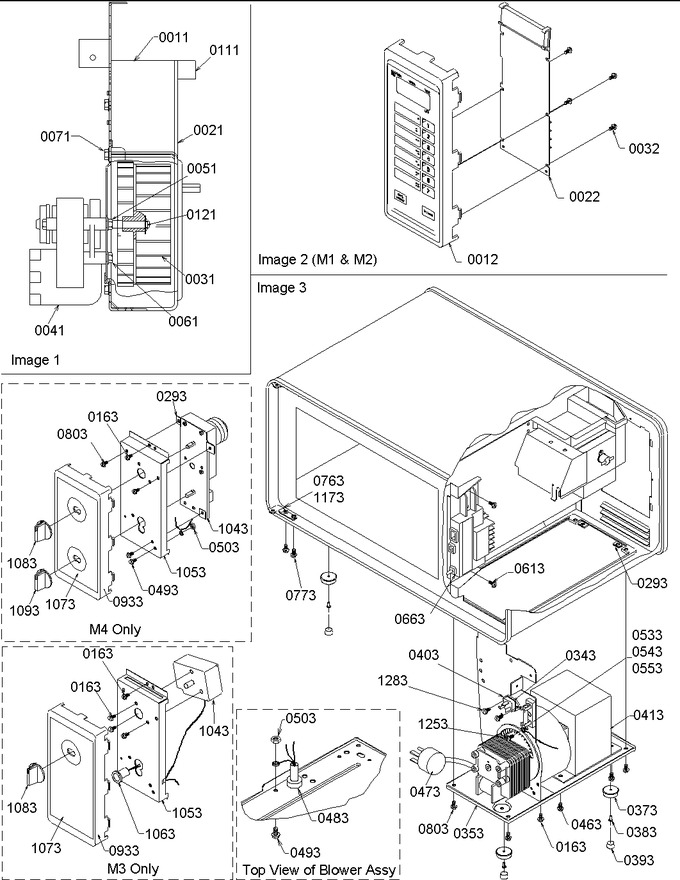

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower/control Panel
02 - Cavity
03 - Electrical Components/door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | M20D324 | Blower Bracket Kit |
|
- | |||||
| 21 | M65D330 | Blower Housing Kit |
|
- | |||||
| 31 | 45278P01 | Wheel Blwr W/clip Insert X |
|
- | |||||
| 41 | M12D100 | Blower Motor Kit |
|
- | |||||
| 51 | WP488130 | Nut (Replaces: M0282007) |
|
$ 6.27 | |||||
| 61 | 5078-CC | Screw |
|
- | |||||
| 71 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 7.04 | ||||
| 111 | A3030302 | Gasket |
|
- | |||||
| 121 | WP3195558 | Clip-blwr Ret (Replaces: M0118903) |
|
$ 7.68 | |||||
| 163 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 7.04 | ||||
| 293 | 42365P01 | U-clip |
|
- | |||||
| 353 | 10825106 | Panel-access |
|
- | |||||
| 373 | B5732506 | Foot O.c. Wrapper |
|
- | |||||
| 383 | A4539625 | Pop Rivet |
|
- | |||||
| 393 | C8965402 | Plug,foot |
|
- | |||||
| 403 | 10966602 | Gasket, Neoprene |
|
- | |||||
| 413 | 10426604 | Transformer, H.v. |
|
- | |||||
| 463 | 5018-JJ | No.10 T X 3/8`` Screw |
|
- | |||||
| 473 | 1731300205 | Cord, Power |
|
- | |||||
| 483 | 5149-M | Bushing, Cord |
|
- | |||||
| 493 | 5146-FF | Screw, No.8 Mach |
|
- | |||||
| 503 | WP488130 | Nut (Replaces: M0282007) |
|
$ 6.27 | |||||
| 533 | 30928P01 | Fuse Blk .250 Term, 40 Deg Tab |
|
- | |||||
| 543 | A4539601 | Pop Rivet |
|
- | |||||
| 553 | WPM0805102 | Fuse 15 Amp (Replaces: M0805102) |
|
$ 21.25 | |||||
| 613 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 7.20 | |||||
| 663 | R0163285 | Switch, Interlock |
|
- | |||||
| 763 | 45179P01 | Hinge Asy |
|
- | |||||
| 773 | 5149-C | No.8-32 Pan Hd Mach Scr (25) |
|
- | |||||
| 803 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 6.26 | ||||
| 933 | R0157533 | Assy, Deco Pnl |
|
- | |||||
| 1043 | 2025206101 | Timer, 6 Minute |
|
- | |||||
| 1053 | 3000030001 | Mounting Plate M7x65 |
|
- | |||||
| 1063 | 1341004275 | Lamp-indicator M9d120 |
|
- | |||||
| 1073 | 3131006904 | Panel, Deco Inlay |
|
- | |||||
| 1083 | 42180P02 | Knob |
|
- | |||||
| 1173 | 45540P01 | Shim-hinge |
|
- | |||||
| 1253 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 |
