SELECT A DIAGRAM

01 - Blower/control Panel


02 - Cavity

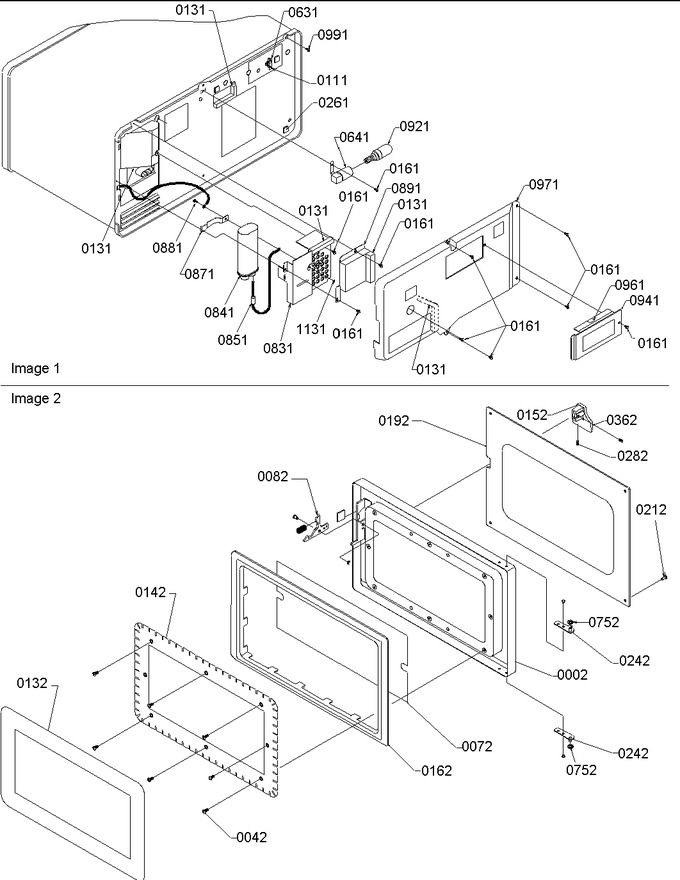

03 - Electrical Components/door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	R0163248		Door Back		Appelez-nous	-
42	WP8281236		No.8 Ab X 3/8`` Screw   (Replaces: 5149-V)				$ 6.80
72	M51D64		Outer Window Kit		Appelez-nous	-
82	R0163249		Door Hook Kit		Appelez-nous	-
111	M0251717		Screw		Appelez-nous	-
131	A3030302		Gasket		Appelez-nous	-
132	R0163294		Kit, Middle Window		Appelez-nous	-
142	R0163246		Door Plate,inner		Appelez-nous	-
152	M11D108		Handle, Door Kit		Appelez-nous	-
161	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
162	R0163247		Filler, Door		Appelez-nous	-
192	4180028602		Window Menumstr Asy Utc		Appelez-nous	-
212	5144-UU		.187 Dia Push Rivet Blk		Appelez-nous	-
242	M8D390		Hng Plt Assy		Appelez-nous	-
261	3010004101		Shelf Support		Appelez-nous	-
282	5051032202		Set Screw No.10 X .25		Appelez-nous	-
362	10805826		Insert-handle		Appelez-nous	-
631	B5795305		Fuse, Thermal		Appelez-nous	-
641	45954P01		Lamp Holder 1435utc		Appelez-nous	-
752	40370P01		Nylon Flat Washer		Appelez-nous	-
831	10824903		Cover-capacitor		Appelez-nous	-
841	D8547927		Capacitor-.69		Appelez-nous	-
851	WP13091701		Rectifier   (Replaces: B8383102)				$ 31.71
871	10822101		Strap, Capacitor		Appelez-nous	-
881	M0253504		Screw		Appelez-nous	-
891	44756P02		Cover Lead 1435.001		Appelez-nous	-
921	25T6		Light Bulb   (Replaces: 44865P01)		Appelez-nous	-
941	3010012808		Door, Lamp Access		Appelez-nous	-
961	38886P01		Clip-dr M2d610 (25)		Appelez-nous	-
971	3010010111		Cover, Rear (grey)		Appelez-nous	-
991	5013-JJ		Speed-clinch		Appelez-nous	-
1131	M0282005		Nut K				$ 7.07

    View Diagram in Separate Window       Print Part List
