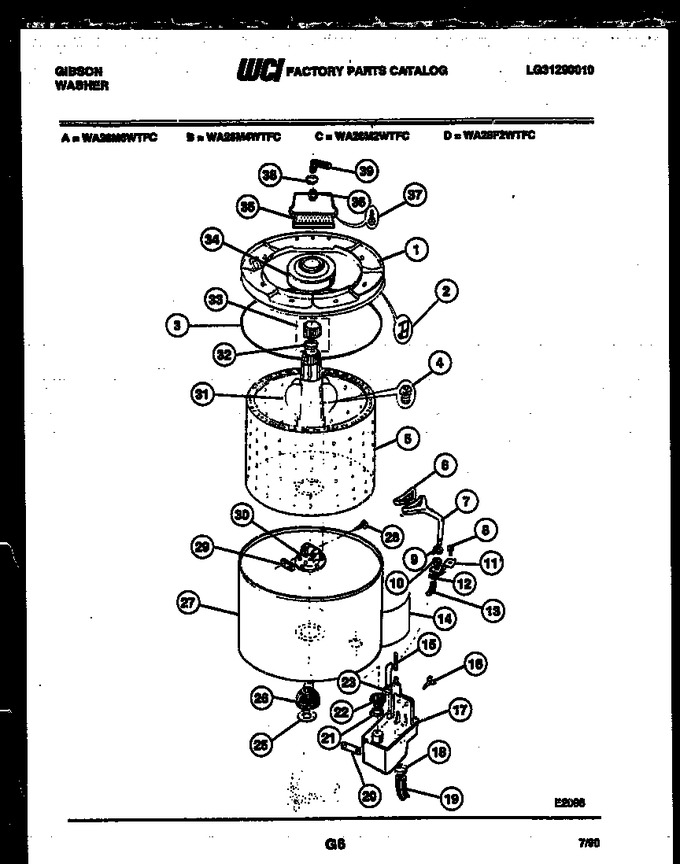

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308011314 | Tub Cover |
|
- | |||||
| 2 | F079975-000 | Clip ( 10 ) |
|
- | |||||
| 3 | F078611-100 | Seal |
|
- | |||||
| 4 | F140624-000 | Sems Screw (5) |
|
- | |||||
| 5 | F079147-400 | Spin Tub |
|
- | |||||
| 6 | 5308011246 | Funnel Insert |
|
- | |||||
| 7 | 5308027530 | Funnel - Bleach |
|
- | |||||
| 8 | F066409-000 | Screw ( 2 ) |
|
- | |||||
| 9 | F140887-018 | Clamp (2) |
|
- | |||||
| 10 | F077272-000 | Coupling |
|
- | |||||
| 11 | F077273-100 | Bracket |
|
- | |||||
| 12 | F063460-001 | Clamp |
|
- | |||||
| 13 | F077271-000 | Tube |
|
- | |||||
| 14 | F132044-000 | Shield - Motor |
|
- | |||||
| 15 | F139821-300 | Clip-hose, Front, Long |
|
- | |||||
| 15 | F077199-008 | Hose - Pressure |
|
- | |||||
| 16 | F136029-000 | Screw ( 2 ) |
|
- | |||||
| 17 | 5303206795 | Button Trap |
|
- | |||||
| 18 | F140887-027 | Clamp |
|
- | |||||
| 19 | F077278-000 | Hose-pump To Trap |
|
- | |||||
| 20 | F139592-000 | Speed Nut |
|
- | |||||
| 21 | F064154-020 | Clamp |
|
- | |||||
| 22 | F137466-000 | Grommet |
|
- | |||||
| 23 | F063460-001 | Clamp |
|
- | |||||
| 24 | 5308002353 | Hose - Pump To Lint Filter |
|
- | |||||
| 25 | F132835-000 | Thrust Washer |
|
- | |||||
| 26 | F138510-000 | Bearing Housing |
|
- | |||||
| 27 | F078451-000 | Splash Tub |
|
- | |||||
| 28 | F140618-000 | Sems Screw (2) |
|
- | |||||
| 29 | F140603-000 | Lockplate |
|
- | |||||
| 30 | F140604-100 | Trunnion |
|
- | |||||
| 31 | 5308002424 | Agitator |
|
- | |||||
| 32 | F073565-000 | Washer |
|
- | |||||
| 33 | F131203-100 | Cap And Washer Assy |
|
- | |||||
| 34 | F141410-000 | Fabric Dispenser (optional) |
|
- | |||||
| 35 | 5308002435 | Lint Filter |
|
- | |||||
| 36 | 5303207083 | Lint Filter Housing |
|
- | |||||
| 37 | F134167-000 | Screw ( 5 ) |
|
- | |||||
| 38 | F140887-000 | Clamp |
|
- | |||||
| 39 | F078921-000 | Hose |
|
- | |||||
| 15A | F139821-200 | Clip-hose-rr Short |
|
- |
