Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 27001039 Transmission Asm (710 Rpm) 10 Appelez-nous -
2 27001030 Assembly, Milk Stool & Bearing 10 Appelez-nous -
3 40003103 Brake Assembly 10 Appelez-nous -
4 WP26594P Grease, Silicone - 2oz Tube   (Replaces: 26594P) 10 Special Order $ 75.86

4 735P3 Kit, Brake Pad   (Replaces: R0000014) 10 In-Stock Immediately $ 40.33

5 40065701 Washer, 2 Odx.63 Id 10 Special Order $ 8.22

6 40063201 Washer, Flat 10 Appelez-nous -
7 40047102 Pulley, Spin/agit (710 Rpm) 10 Special Order $ 37.37

8 40041501 Washer 10 Special Order $ 32.07

9 40063401 Screw, 1/4-20x5/8 Hex 10 Special Order $ 38.22

10 40047402 Helix, Plastic 10 Special Order $ 16.19

11 25-7941 ``o`` Ring 10 Special Order $ 5.83

12 21001533 Seal Nut Assembly 10 Appelez-nous -
13 Y2200460 Triple Lip Seal/bearing Kit 10 Appelez-nous -
14 WP40004001 Bearing, Main   (Replaces: 40004001) 10 Special Order $ 90.10

15 35-2010 Seal,transmission Housing(lip) 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

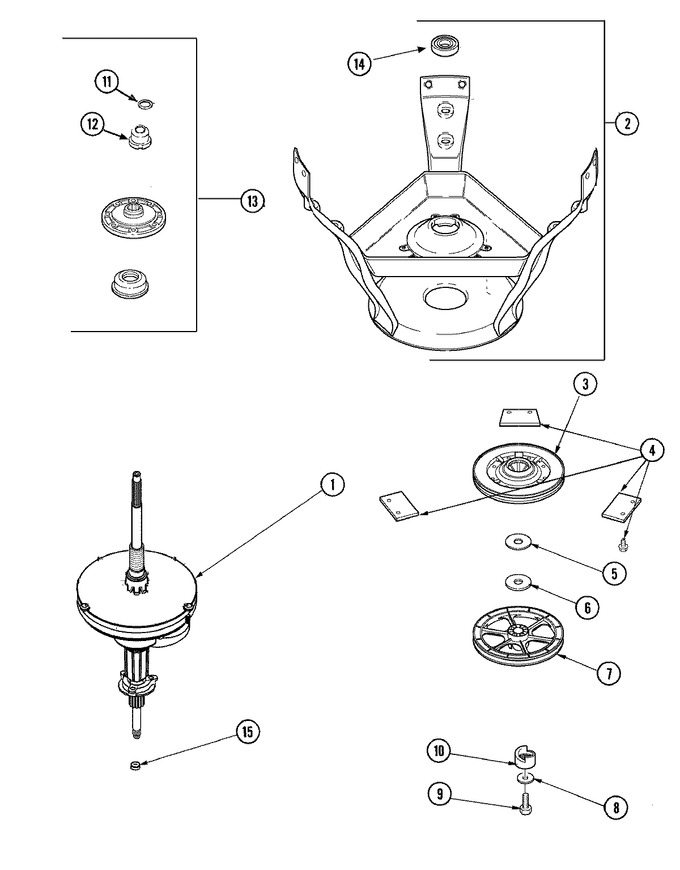

Diagram for SAV505DAWW
