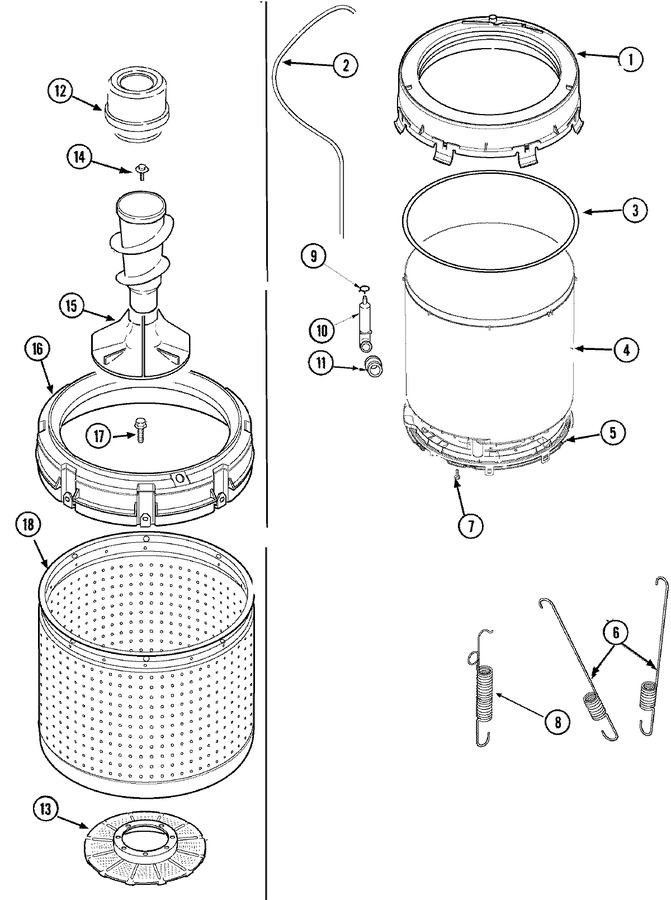

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	27001053		Tub Cover Assy W` Gasket	10	Appelez-nous	-
2	40065001		Tubing, Pvc 28``	10	Appelez-nous	-
3	40076601		Gasket, Tub Cover	10			$ 27.07
4	40111001P		Tub, Plastic Outer	10			$ 58.50
5	27001067		Bottom, Outer Tub	10	Appelez-nous	-
6	27001026		Spring, Tall Tub	10	Appelez-nous	-
7	40064301		Screw, 1/4-15x3/4 Hex	10	Appelez-nous	-
8	27001025		Spring, Counterweight	10	Appelez-nous	-
9	WP285655		Clamp, Hose   (Replaces: 27001024)	10		Immediately	$ 7.55
10	COMM PART		Assembly, Pressure Bulb   (Replaces: 40008501)	10	Appelez-nous	-
11	29175		Grommet   (Replaces: 40037801)	10			$ 8.56
12	WP21001905		Dispenser, Fabric (one Piece)   (Replaces: 21001905)	10			$ 73.02
13	40008001		Filter, Lint	10	Appelez-nous	-
14	40065102		Screw, Shoulder 1/4	10			$ 24.54
15	WP22004042		Agitator/auger Assy (as Pk)   (Replaces: 22004042)	10			$ 277.06
16	27001052		Balance Ring	10	Appelez-nous	-
17	WPW10116787		Screw, 5/16-18x7/8 Hx   (Replaces: 40063301)	10			$ 19.26
18	40000801		Assembly, Wash Tub S.s	10	Appelez-nous	-
