SELECT A DIAGRAM

01 - Cabinet & Base


02 - Control Panel


03 - Mixing Valve And Hoses


04 - Motor, Pump And Idler Assembly


05 - Supplemental Information


06 - Top And Door Switch


07 - Transmission & Brake


08 - Tub (inner & Outer)


09 - Tub, Inner & Outer (series 12)


10 - Wiring Information

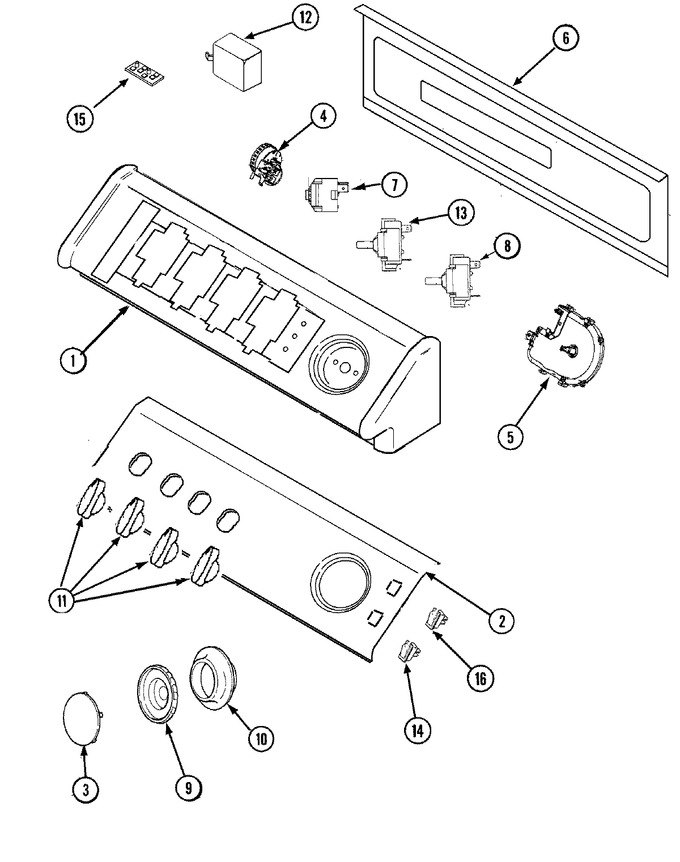

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	27001110		Console (wht)	10	Appelez-nous	-
2	27001050		Facia Ground Wire Assembly	10	Appelez-nous	-
2	27001125		Facia	10	Appelez-nous	-
3	27001112		Cap, Timer Knob	10	Appelez-nous	-
4	27001047		Switch, Pressure	10			$ 39.47
4	27001127		Switch, Pressure	11	Appelez-nous	-
5	WP33002917		Screw (hex Head)   (Replaces: 33001855)	10		Immediately	$ 6.90
5	27001113		Timer	10			$ 191.95
6	27001051		Back Panel, Hood/console	10	Appelez-nous	-
7	27001103		Switch, Rotary (2 Pos)	10	Appelez-nous	-
8	27001114		Switch, Rotary (4 Pos)	10			$ 67.70
9	WP22003993		Knob, Timer (blue-gray)   (Replaces: 27001090)	10			$ 24.15
10	27001092		Skirt, Timer Knob	10	Appelez-nous	-
10	22002997		Pin, Locking	10	Appelez-nous	-
11	WP27001126		Knob, Selector   (Replaces: 27001126)	10			$ 48.52
12	33001623		Buzzer, Non-adjustable	10			$ 55.84
13	27001059		Switch, Temperature (6 Pos)	10			$ 15.88
14	22003981		Switch, Momentary Rocker (wht)	10			$ 14.20
15	40131001		Board, Atc 3 Point	10	Appelez-nous	-
16	WP74010226		Switch, Rocker (wht)   (Replaces: 22003977)	10			$ 86.45

    View Diagram in Separate Window       Print Part List
