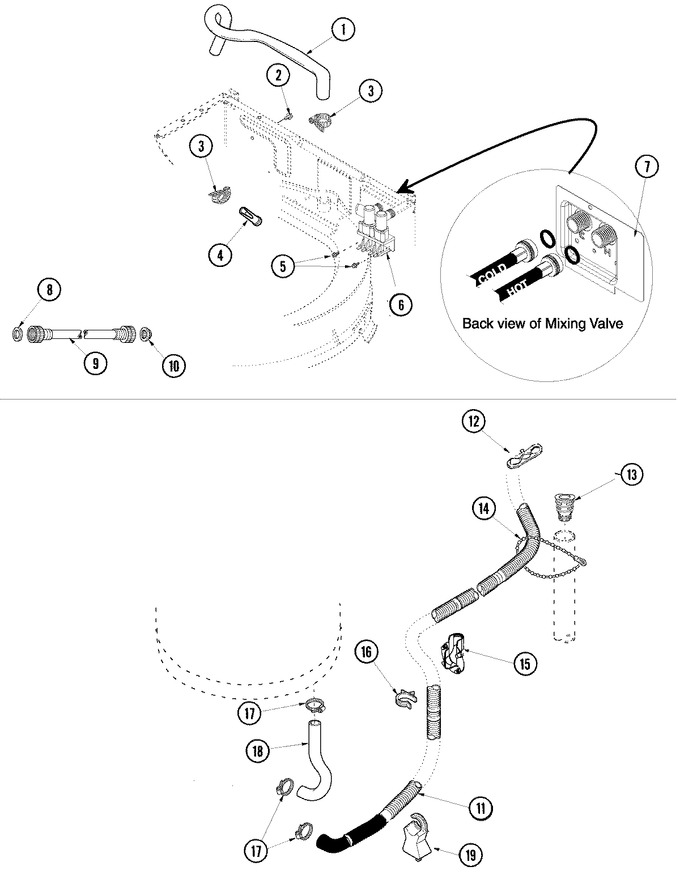

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	40098901		Hose, Mixing Valve To Tub	10	Appelez-nous	-
2	285394		Screw, 10-16x.44 Uns   (Replaces: 503661)	10	Appelez-nous	-
3	36801		Clamp, Hose	10		Immediately	$ 9.22
4	34500		Preventor, Backflow	10		Immediately	$ 6.95
5	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)	10		Immediately	$ 7.04
6	40107001		Valve,mixing-e2	10			$ 90.76
6	27001062		Twisted Pair Assy (wire)	10	Appelez-nous	-
7	40098801		Plate, Mixing Value	10			$ 26.22
8	20290		Washer, 19/32 Idx1.031	10	Appelez-nous	-
9	WP89503		Hose, 4` Inlet   (Replaces: 33-7891)	10		Immediately	$ 21.68
9	W11629055		Hose, Inlet   (Replaces: 35-0874)	10			$ 24.93
10	28605		Washer, Filter	10	Appelez-nous	-
11	WP40053901		Hose, Drain   (Replaces: 40053901)	10		Immediately	$ 61.94
12	22003814		Retainer, Drain Hose	10			$ 34.43
13	40008101		Adapter, Standpipe	10			$ 84.69
14	33489		Strap, Standpipe Bead	10	Appelez-nous	-
15	40058501		Relief, Strain Drain	10			$ 35.53
16	36014		Clip, Retainer-hose	10			$ 6.95
17	36801		Clamp, Hose	10		Immediately	$ 9.22
18	40094201		Hose, Tub To Pump	10			$ 21.92
19	40044901		Stand, Hose	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
