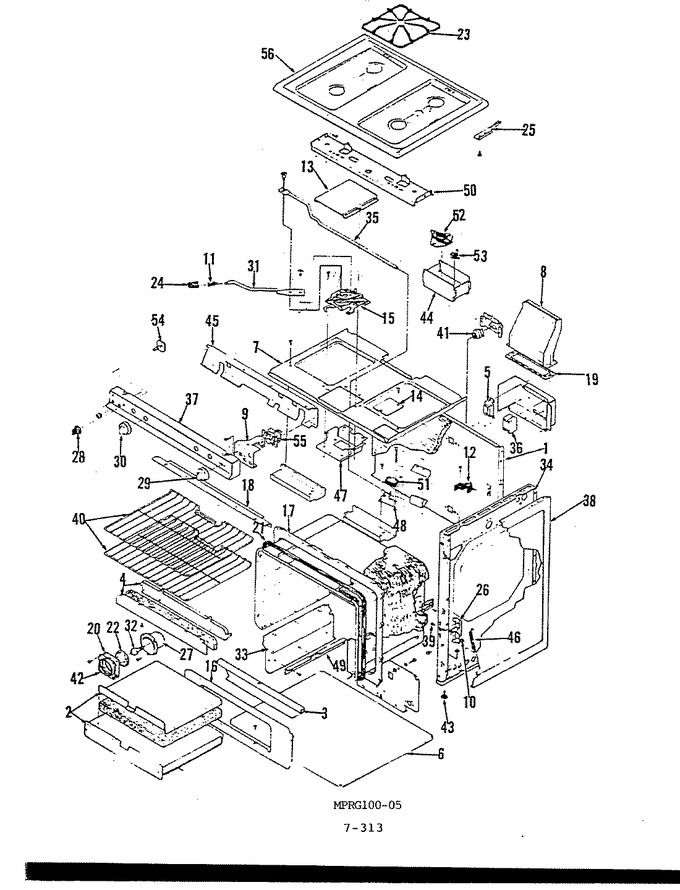

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Control System
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F052-20 | Back, Main | 17 |
|
- | ||||
| 1 | 4002F045-45 | Back, Brl Section | 8-16 |
|
- | ||||
| 1 | 4002F050-45 | Back Broiler Section | 17 |
|
- | ||||
| 1 | 4002J028 | Back, Main | 1-6 |
|
- | ||||
| 1 | 903115 | Lock Light | 1-7 |
|
$ 5.70 | ||||
| 1 | 4002F046-20 | Back, Main | 7-16 |
|
- | ||||
| 2 | 0153332 | + Baffle | 1 |
|
- | ||||
| 3 | 0153327 | Baffle | 1 |
|
- | ||||
| 4 | 0153330 | + Baffle | 1 |
|
- | ||||
| 4 | 3601F108-12 | Baffle, Ovn Frt Uppe | 17 |
|
- | ||||
| 5 | 7116E002 | Bolt, Door Lock | 1 |
|
- | ||||
| 5 | 1023208 | Ballast | 1 |
|
- | ||||
| 5 | 1867271 | Block | 1 |
|
- | ||||
| 5 | 1867269 | Block | 1 |
|
- | ||||
| 6 | 4011F087-20 | Bottom, Broiler | 1-21 |
|
- | ||||
| 6 | 4011F097-20 | Bottom, Broiler | 22 |
|
- | ||||
| 7 | 4011J075 | Bottom, Burner Box | 1 |
|
- | ||||
| 7 | Y0234281 | + Bottom Asy Ovn | 1 |
|
- | ||||
| 8 | 0284303 | Bracket | 1 |
|
- | ||||
| 8 | 3801F093 | Bracket | 1 |
|
- | ||||
| 8 | 4006W026-13 | Box, Flue | 1 |
|
- | ||||
| 8 | 3801F082 | Bracket | 1 |
|
- | ||||
| 8 | Y0315206 | Clamp | 1 |
|
- | ||||
| 9 | 8010E012 | Bumper, Main Top | 1 |
|
- | ||||
| 9 | 3801F101-80 | Bracket, Tie Down | 1 |
|
- | ||||
| 11 | 7112E003 | Clip, Door Lock | 1 |
|
- | ||||
| 11 | WP7112P004-60 | Clip (Replaces: 1141238) | 1 |
|
Immediately | $ 11.07 | |||
| 12 | 1141237 | Clip | 1 |
|
- | ||||
| 13 | 4005J037 | Cover - Lock | 1 |
|
- | ||||
| 14 | 4005F139 | Cover Switch Lock | 1 |
|
- | ||||
| 15 | 8002E009 | Catch, Door Lock | 1 |
|
- | ||||
| 16 | 0462232 | Frame Assy. | 1 |
|
- | ||||
| 16 | 2201F034-23 | Front, Oven Lower | 22 |
|
- | ||||
| 17 | 2201C025 | Frame, Oven Front | 1 |
|
- | ||||
| 18 | 4012F013 | Frame, Burner Box Front | 1 |
|
- | ||||
| 19 | 1313276 | Gasket | 1 |
|
- | ||||
| 20 | 1313260 | Gasket, Lampguard Retainer | 1 |
|
- | ||||
| 21 | 1313279 | Gasket, Oven | 1 |
|
- | ||||
| 22 | 1327784 | Glass, Lightguard | 1 |
|
- | ||||
| 23 | Y0505218 | Grate | 1 |
|
- | ||||
| 24 | 7701E003 | Handle, Door Lock | 1 |
|
- | ||||
| 25 | 529104 | Hinge, Main Top-right | 1 |
|
- | ||||
| 25 | 529103 | Hinge, Main Top-left | 1 |
|
- | ||||
| 26 | Y0528261 | + Hinge, Oven Door (lt) | 1 |
|
- | ||||
| 26 | Y0528262 | + Hinge | 1 |
|
- | ||||
| 27 | 0507243 | Insert, Broil Pan | 1 |
|
- | ||||
| 27 | 0537253 | Housing, Lamp | 1 |
|
- | ||||
| 28 | 7711E099 | Knob, Selector | 1 |
|
- | ||||
| 29 | 1358456 | Knob,thermostat(gas) | 1 |
|
- | ||||
| 30 | 7711P174-60 | Knob, Valve | 13 |
|
- | ||||
| 30 | 1356401 | Knob, Valve | 1-12 |
|
- | ||||
| 31 | 8009E003 | Lever, Door Lock | 1 |
|
- | ||||
| 32 | 40A15 | Light, Oven (Replaces: 1077202) | 1 |
|
Immediately | $ 1.98 | |||
| 33 | 0606391 | Lining, Misc. | 1 |
|
- | ||||
| 34 | 4009W028-23 | Lining, Inner Side | 1 |
|
- | ||||
| 35 | 8021E001 | Link, Door Lock | 1 |
|
- | ||||
| 36 | 1522106 | Module, Spark | 1 |
|
- | ||||
| 37 | 663202 | Pan, Broiler | 1 |
|
- | ||||
| 37 | 7722E014 | Trim, Manifold | 1 |
|
- | ||||
| 38 | 801240A | Panel, Side (alm) | 1 |
|
- | ||||
| 38 | 0801240B | Panel, Side ((coffee) | 1 |
|
- | ||||
| 38 | 0801240G | Panel, Side (fresh Avocado) | 1 |
|
- | ||||
| 38 | 0801240Y | Panel, Side | 1 |
|
- | ||||
| 38 | 801240N | Panel, Side (wht) | 1 |
|
- | ||||
| 39 | 1584204 | Pin, Oven Door Hinge | 1 |
|
- | ||||
| 40 | 7801E011 | Rack, Oven | 1 |
|
- | ||||
| 41 | 1657202 | Receptacle, Oven Light | 1 |
|
- | ||||
| 42 | 0749227 | Retainer, Lampguard | 1 |
|
- | ||||
| 43 | 1986347 | Screw, Leveling | 1 |
|
- | ||||
| 44 | Y0787421 | Shield | 1 |
|
- | ||||
| 44 | 0537253 | Housing, Lamp | 1 |
|
- | ||||
| 45 | 3604F058 | Shield | 1 |
|
- | ||||
| 46 | WP7803P058-60 | Spring, Oven Door (Replaces: 1790300) | 1 |
|
$ 16.55 | ||||
| 47 | 3807F188 | Support, Door Lock | 1 |
|
- | ||||
| 48 | 3807F193 | Support, Door Lock Switch | 1 |
|
- | ||||
| 49 | 0862446 | Support | 1 |
|
- | ||||
| 50 | 0862470 | Support | 1 |
|
- | ||||
| 50 | 3807F210-80 | Support, Top Burner | 20 |
|
- | ||||
| 51 | 7403P077-60 | Switch----na | 1 |
|
- | ||||
| 52 | 1832404 | Switch | 1 |
|
- | ||||
| 52 | 7403P091-60 | Switch, Thermal | 18 |
|
- | ||||
| 53 | 7403E004 | Switch | 1 |
|
- | ||||
| 54 | 7403E015 | Switch, Selector | 1 |
|
- | ||||
| 55 | 7515E005 | Thermostat, Gas | 1 |
|
- | ||||
| 56 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 1-14 |
|
$ 11.95 | ||||
| 56 | Y0902288A | Top, Main | 1 |
|
- | ||||
| 56 | 0902288B | + Top, Main | 1 |
|
- | ||||
| 56 | 0902288G | + Top, Main | 1 |
|
- | ||||
| 56 | 7402P014-60 | Cord, Power | 15 |
|
- |
