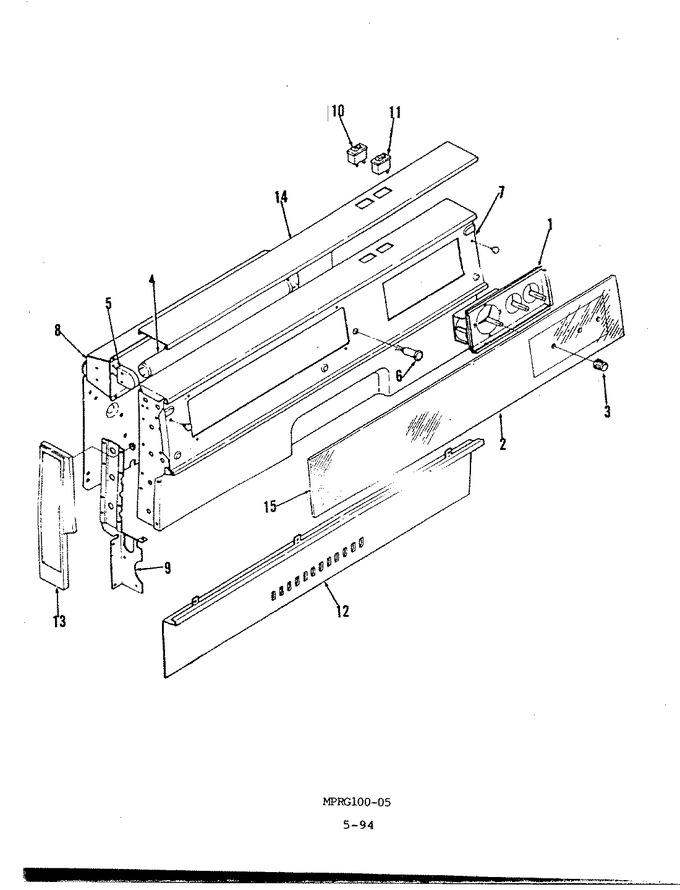

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1201230 | Cover, Light Hole | 1 |
|
- | ||||
| 1 | 7601P041-60 | + Clock, Self Clean | 2 |
|
- | ||||
| 1 | 7601E029 | Clock, S.c. | 1 |
|
- | ||||
| 1 | 4005J106 | Cover, Bkgd Wire | 1 |
|
- | ||||
| 1 | 1201209 | Cover | 1 |
|
- | ||||
| 1 | 1023208 | Ballast | 1 |
|
- | ||||
| 2 | 7902E090 | Glass, Backguard | 1 |
|
- | ||||
| 2 | 1327176 | Glass | 1 |
|
- | ||||
| 3 | 7711P126-60 | Knob, Clock | 1 |
|
- | ||||
| 4 | 1447213 | Lamp, Fluorescent | 1 |
|
- | ||||
| 5 | 1448213 | Receptacle, Lamp | 1 |
|
- | ||||
| 6 | 1406235 | Light, Indicator | 1 |
|
- | ||||
| 6 | 1555247 | Grip Nut | 1 |
|
- | ||||
| 6 | 2620W002-00 | Panel, Bkgd Blk | 1-8 |
|
- | ||||
| 6 | 2620W014-00 | Panel, Bkgd Lower | 9 |
|
- | ||||
| 7 | 2601W053-88 | Backguard Assy - G | 1 |
|
- | ||||
| 7 | 2601W053-81 | Backguard Assy, Sw | 1 |
|
- | ||||
| 7 | 2601W053-86 | Backguard Assy - Y | 1 |
|
- | ||||
| 7 | 2601W053-87 | Backguard Assy - B | 1 |
|
- | ||||
| 9 | 0862457 | Support | 1 |
|
- | ||||
| 9 | 0862417 | Support | 1 |
|
- | ||||
| 9 | 0862418 | Support | 1 |
|
- | ||||
| 10 | 7403P067-60 | Switch (Replaces: 1832349) | 1 |
|
$ 91.35 | ||||
| 11 | 1832350 | Switch | 1 |
|
- | ||||
| 12 | 1916326 | Trim, Backguard | 1 |
|
- | ||||
| 13 | 1916211 | Trim | 1 |
|
- | ||||
| 13 | 1916212 | Trim | 1 |
|
- | ||||
| 14 | 1917105 | Trim, Bkgd Top | 1 |
|
- | ||||
| 15 | 7720P072-60 | Trim, Glass Retainer Nla In Pr | 1 |
|
- |
