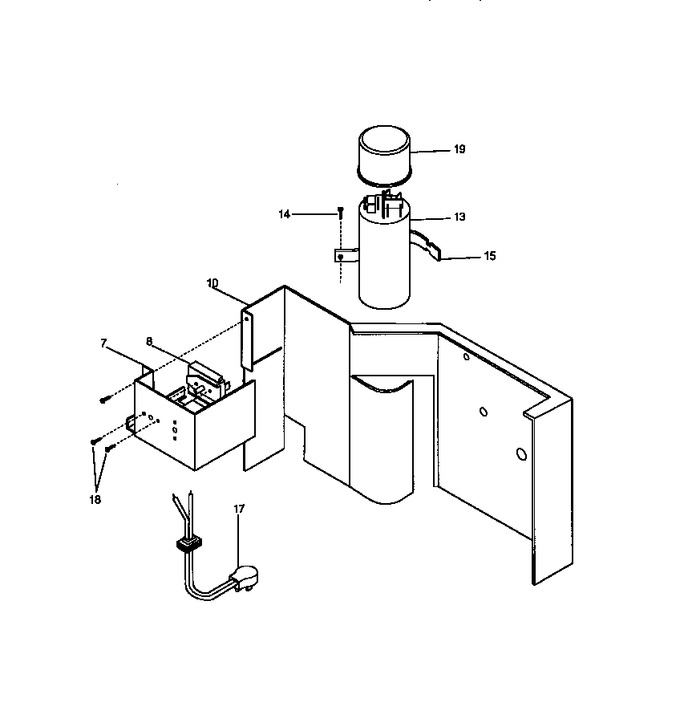

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Cabinet Front And Wrapper
03 - Controls
04 - Air Handling
05 - Compressor
06 - Window Mounting
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 309602502 | Box-control |
|
- | |||||
| 8 | 5303300204 | Switch-selector |
|
- | |||||
| 10 | 309602401 | Bulkhead |
|
- | |||||
| 13 | 5303303128 | Capacitor, 370 V, 20 Mfd |
|
- | |||||
| 14 | 5303303691 | Screw, Phillips, 8-18 X .38, Nib Truss Hd. |
|
- | |||||
| 15 | 5303303086 | Strap-capacitor |
|
- | |||||
| 17 | 5303302853 | Cord-electric Power |
|
- | |||||
| 18 | 5303007754 | Screw |
|
- | |||||
| 19 | 5303302855 | Cover-capacitor |
|
- | |||||
| *38160 | 5303304090 | Seal-control Box |
|
- |
