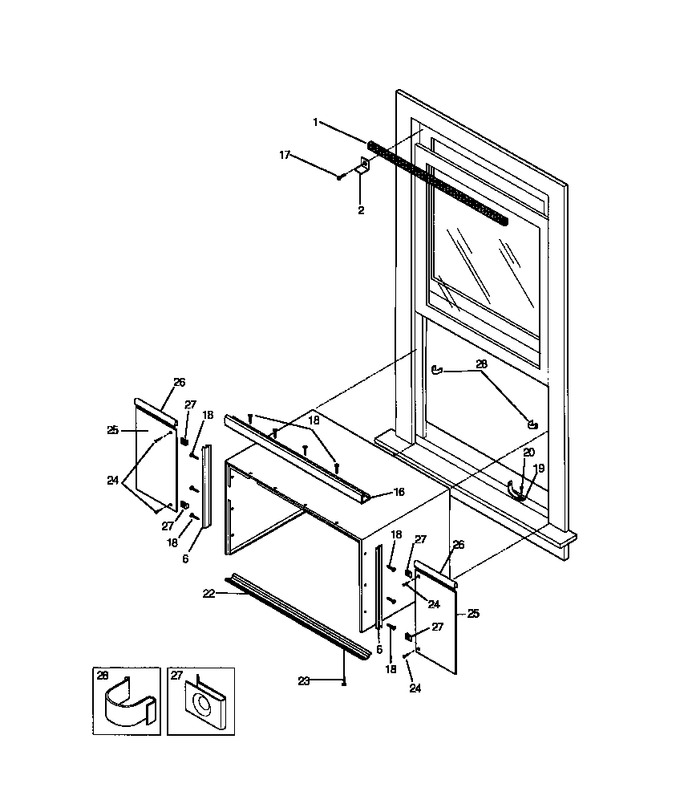

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Cabinet Front And Wrapper
03 - Controls
04 - Air Handling
05 - Compressor
06 - Window Mounting
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3002603 | Seal-window |
|
- | |||||
| 2 | 5303211056 | Bracket |
|
- | |||||
| 6 | 08007480 | Retainer-side |
|
- | |||||
| 16 | 5303303690 | Rail-top |
|
- | |||||
| 17 | 3002803 | Screw - Sash Lock |
|
- | |||||
| 18 | 5303303691 | Screw, Phillips, 8-18 X .38, Nib Truss Hd. |
|
- | |||||
| 19 | 3201594 | Strap-safety |
|
- | |||||
| 20 | 5303295750 | Screw |
|
- | |||||
| 22 | 5303302857 | Rail-bottom |
|
- | |||||
| 23 | 3001806 | Screw |
|
- | |||||
| 24 | 5308002974 | Screw |
|
- | |||||
| 25 | 5303304308 | Panel-window, Cut To Size |
|
- | |||||
| 26 | 5303304470 | Gasket-panel |
|
- | |||||
| 27 | 5308017206 | Nut, (4) |
|
- | |||||
| 28 | 5303001821 | Clip, (2), Panel |
|
- |
