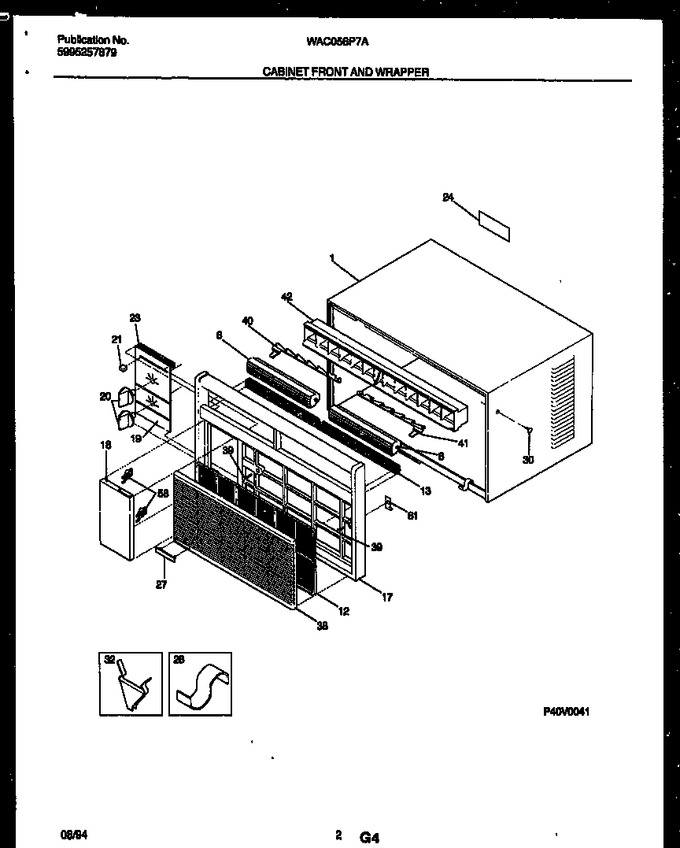

02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270060 | Wrapper |
|
- | |||||
| 8 | 5303001784 | Clip-front Base |
|
- | |||||
| 12 | 5303016095 | Filter |
|
- | |||||
| 13 | 3016094 | Seal-mullion |
|
- | |||||
| 17 | 3016097 | Front - Complete |
|
- | |||||
| 19 | 5303280596 | Dial Plate |
|
- | |||||
| 20 | 5300331902 | Knob Control |
|
- | |||||
| 21 | 5303002189 | Knob-slide |
|
- | |||||
| 27 | 5300138101 | Nameplate |
|
- | |||||
| 30 | 08016091 | Plug |
|
- | |||||
| 32 | 5303001844 | Clip-link, (2) |
|
- | |||||
| 38 | 3016096 | Panel-front |
|
- | |||||
| 39 | 134178901 | Screw,front (Replaces: 5303293767) |
|
$ 14.89 | |||||
| 40 | 5303293759 | Link-louvers, Lh |
|
- | |||||
| 41 | 5303293758 | Link-louvers, Rh |
|
- | |||||
| 42 | 5303002457 | Louvers W/ Link |
|
- | |||||
| 58 | 5303017980 | Hinge - Door |
|
- | |||||
| 61 | 5308017124 | Bracket-front |
|
- |
