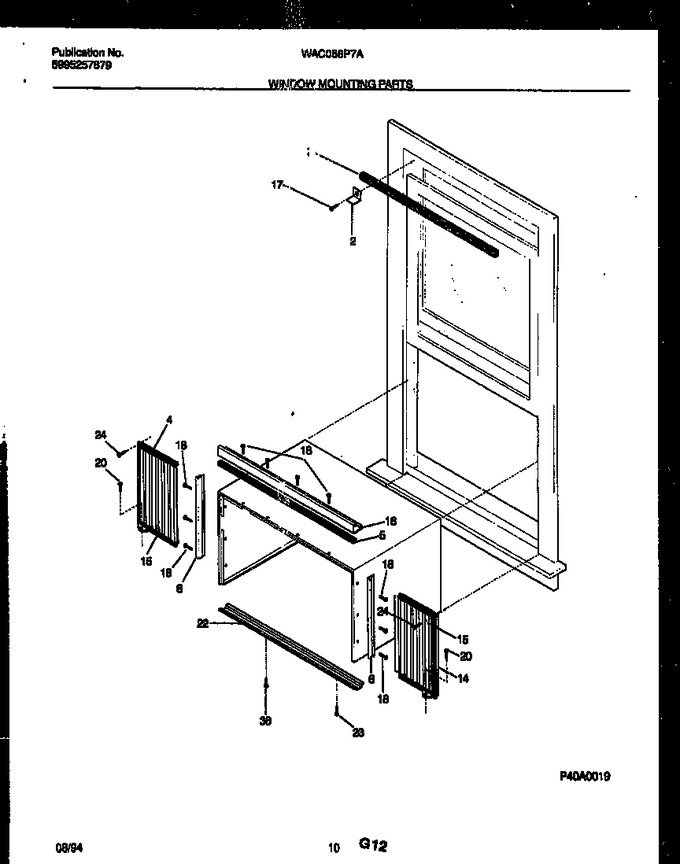

02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3002603 | Seal-window |
|
- | |||||
| 2 | 5303211056 | Bracket |
|
- | |||||
| 4 | 5303282370 | Frame-lh |
|
- | |||||
| 5 | 08016226 | Seal, Top Rail |
|
- | |||||
| 6 | 3015312 | Screw |
|
- | |||||
| 6 | 5303298326 | Retainer-accordian |
|
- | |||||
| 14 | 5303282371 | Frame-rh |
|
- | |||||
| 15 | 5303270075 | Accordian |
|
- | |||||
| 16 | 5303301700 | Rail-top |
|
- | |||||
| 17 | 3002803 | Screw - Sash Lock |
|
- | |||||
| 20 | 5303295750 | Screw |
|
- | |||||
| 22 | 5303270072 | Rail Bottom |
|
- | |||||
| 23 | 3001806 | Screw |
|
- | |||||
| 24 | 5308002974 | Screw |
|
- | |||||
| 38 | 08016080 | Screw-leveling |
|
- |
