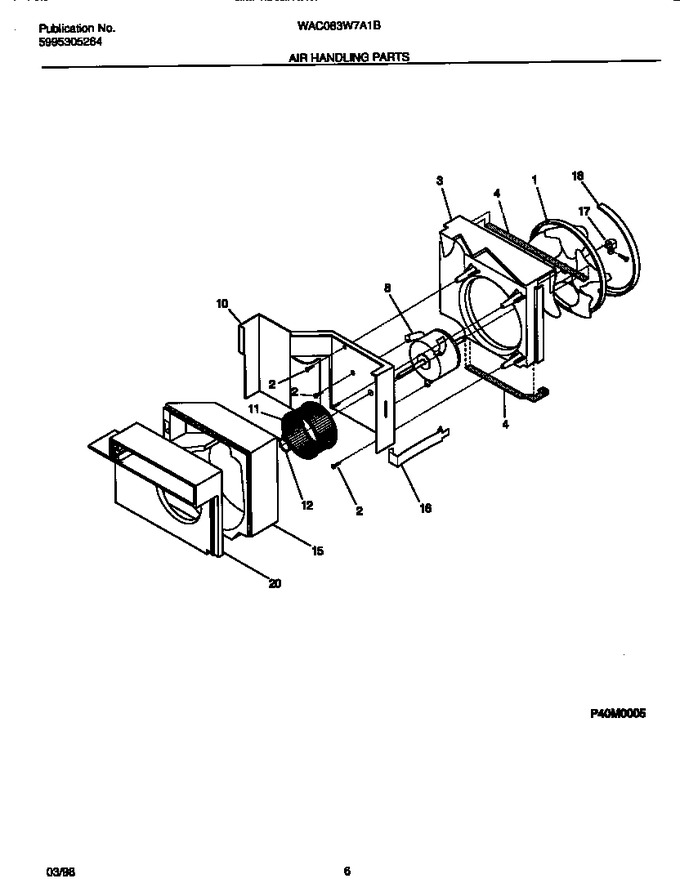

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309624502 | Fan Blade,with Clamp |
|
$ 85.31 | |||||
| 2 | 3202975 | Screw`10-16 X 0.72 ,square Drive |
|
- | |||||
| 3 | 309624201 | Housing-fan |
|
- | |||||
| 4 | 5303270043 | Seal, Condenser |
|
- | |||||
| 7 | 3015312 | Screw, 8-18 X 0.47 |
|
- | |||||
| 8 | 5303291522 | Motor Fan |
|
- | |||||
| 10 | 309602403 | Bulkhead |
|
- | |||||
| 11 | 309603301 | Blower Wheel |
|
$ 57.65 | |||||
| 12 | 5303012110 | Clamp-blower |
|
$ 8.14 | |||||
| 15 | 5303302851 | Housing-blower |
|
- | |||||
| 16 | 309100201 | Clip |
|
- | |||||
| 20 | 5303303573 | Plate-blower Housing |
|
- |
