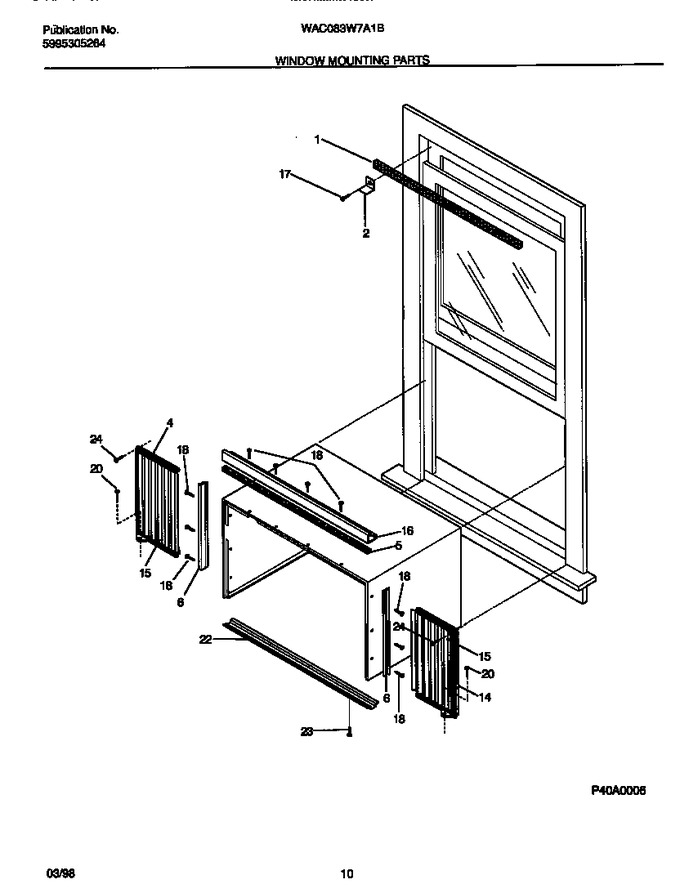

06 - Window Mounting
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3002603 | Seal, Frame, Top |
|
- | |||||
| 2 | 5303211056 | Bracket |
|
- | |||||
| 4 | 5303311127 | Frame,lh |
|
- | |||||
| 5 | 08016226 | Seal |
|
- | |||||
| 7 | 3015312 | Screw, 8-18 X 0.47 |
|
- | |||||
| 14 | 5303311128 | Frame,rh |
|
- | |||||
| 15 | 309626501 | Accordian |
|
- | |||||
| 16 | 5303302859 | Retainer, Top |
|
- | |||||
| 17 | 3002803 | Screw-wood |
|
- | |||||
| 18 | 5303303691 | Screw |
|
- | |||||
| 20 | 5303295750 | Screw |
|
- | |||||
| 22 | 5304403252 | Retainer,bottom |
|
- | |||||
| 23 | 3001806 | Screw |
|
- | |||||
| 24 | 5308002974 | Screw |
|
- | |||||
| *02760 | 5303284744 | Instructions, Installation |
|
- | |||||
| *02761 | 5303301888 | Kit - Window Mtg |
|
- |
