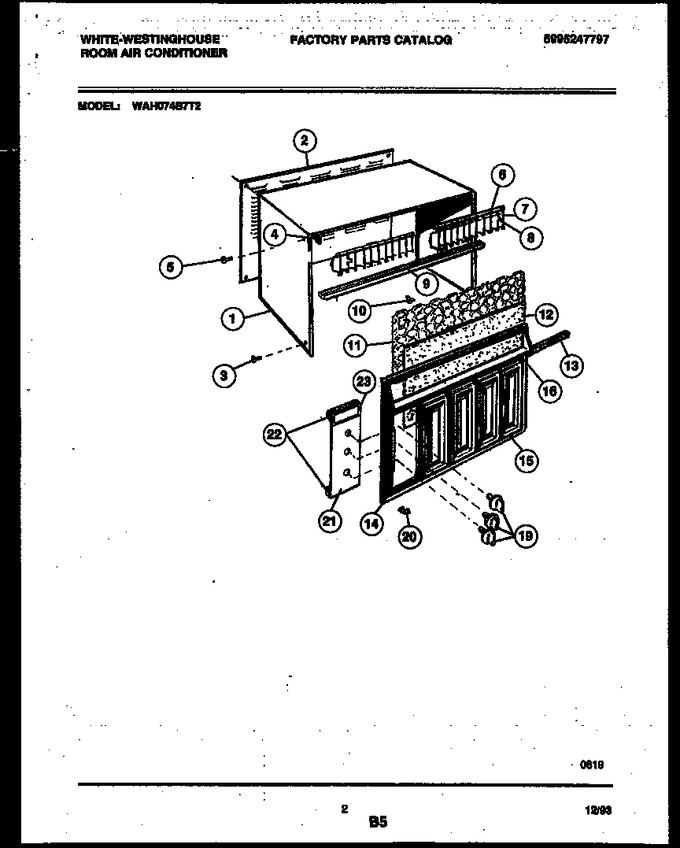

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303302468 | Wrapper |
|
- | |||||
| 2 | 5308006428 | Panel-rear |
|
- | |||||
| 3 | 3015312 | Screw-wrapper |
|
- | |||||
| 4 | 08010928 | Nut, Cab. Front |
|
- | |||||
| 5 | 5303271346 | Screw, Cab. Front |
|
- | |||||
| 6 | 5303302470 | Link-louver (2) |
|
- | |||||
| 7 | 5303302471 | Louver (12) |
|
- | |||||
| 8 | 5303302472 | Louver W/ Handle (2) |
|
- | |||||
| 9 | 5303285394 | Retainer, Louver |
|
- | |||||
| 10 | 5308013095 | Clip, Filter |
|
- | |||||
| 11 | 5303285402 | Screen |
|
- | |||||
| 12 | 3016117 | Filter |
|
- | |||||
| 13 | 5300521760 | Seal-mullion |
|
- | |||||
| 14 | 5303285393 | Seal, Bottom |
|
- | |||||
| 15 | 5303291239 | Front, Complete |
|
- | |||||
| 16 | 5303285391 | Trim, Mullion |
|
- | |||||
| 19 | 5300331902 | Knob (3) |
|
- | |||||
| 20 | 5308010914 | Clip-front To Base |
|
- | |||||
| 21 | 5303291111 | Dial Plate |
|
- | |||||
| 22 | 5303012017 | Seal |
|
- | |||||
| 11A | 5308008175 | Screw-screen (non-illustrated) |
|
- |
