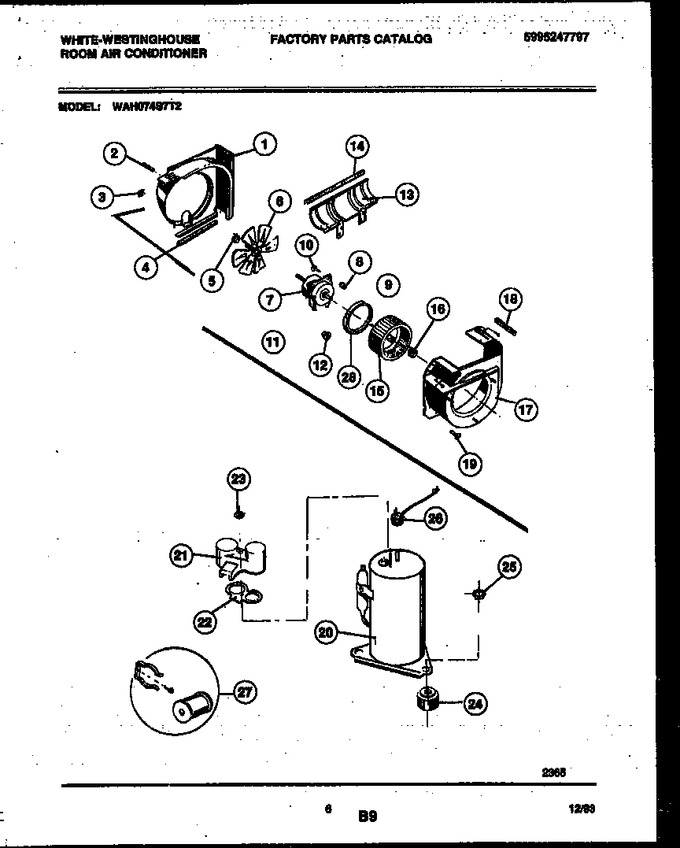

02 - Cabinet Parts
03 - System Parts
04 - Air Handling And Compressor Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308006455 | Shroud |
|
- | |||||
| 2 | 5308007697 | Seal Top |
|
- | |||||
| 3 | 5303002607 | Clip, Shroud To Condenser |
|
- | |||||
| 4 | 5308006456 | Seal, Bottom |
|
- | |||||
| 5 | 5303014132 | Clip Fan Blade |
|
- | |||||
| 6 | 5308006458 | Fan Blade |
|
- | |||||
| 7 | 5303302477 | Motor-fan |
|
- | |||||
| 8 | 08013770 | Grommet (2) |
|
- | |||||
| 9 | 5303001825 | Grommet (1) |
|
- | |||||
| 10 | 5308009142 | Screw (3) |
|
- | |||||
| 11 | 08009025 | Clamp, Motor Wires |
|
- | |||||
| 12 | 5300521787 | Bushing, Motor Wires |
|
- | |||||
| 13 | 5303285201 | Baffle-condensate |
|
- | |||||
| 14 | 08013700 | Bumper |
|
- | |||||
| 15 | 5308006464 | Blower Wheel |
|
- | |||||
| 16 | 5303012110 | Clamp |
|
$ 8.14 | |||||
| 17 | 08006465 | Scroll |
|
- | |||||
| 18 | 08013055 | Seal-scroll |
|
- | |||||
| 19 | 5308002974 | Screw, Scroll |
|
- | |||||
| 20 | 5303295747 | Compressor |
|
- | |||||
| 21 | 3200281 | Cover |
|
- | |||||
| 22 | 3200282 | Gasket-cover |
|
- | |||||
| 23 | 5303211017 | Nut |
|
- | |||||
| 24 | 5303015945 | Grommet |
|
- | |||||
| 25 | 5303015946 | Nut |
|
- | |||||
| 26 | 5303281352 | Overload |
|
- | |||||
| 27 | 5303201723 | Start Kit |
|
- | |||||
| 28 | 5308006462 | Seal, Fan Motor |
|
- | |||||
| *84404 | 3203179 | Capillary Tube, Cut To 35`` |
|
- |
