01 - Cover
02 - Cabinet Front/wrapper

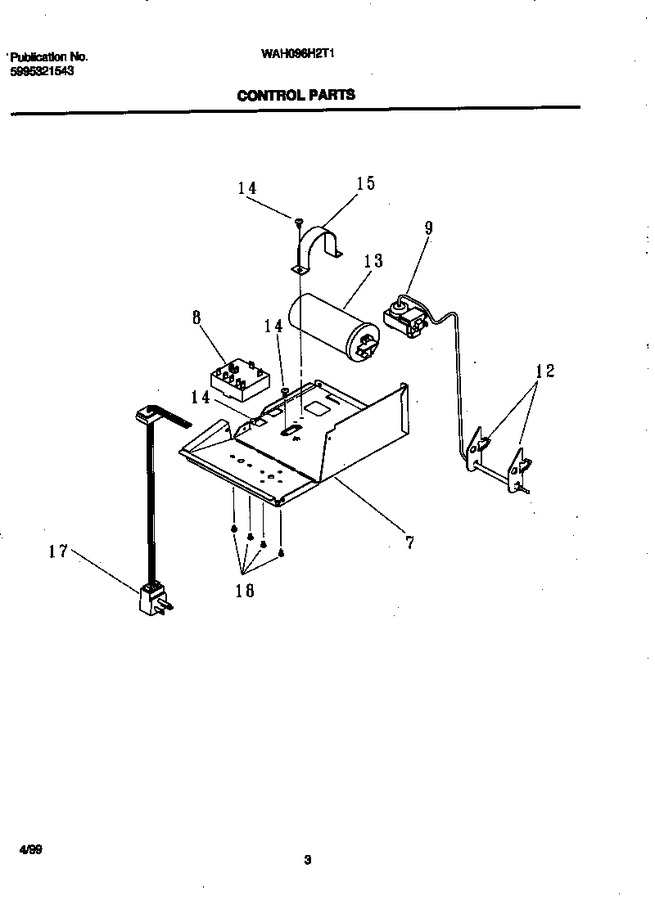

03 - Control Parts
04 - Air Handling Parts
05 - Compressor
06 - Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 309628501 | Box-control 18.5tc Rot |
|
- | |||||
| 8 | 5304408739 | Switch-7pos Ge 3sp L |
|
$ 155.51 | |||||
| 9 | 5304408746 | Control-air Temp Bld 12amp |
|
$ 151.25 | |||||
| 12 | 309329801 | Retaining Clip-sens Bulb |
|
- | |||||
| 13 | 5304408737 | Capac-15+6/370 M24p3715w06 |
|
- | |||||
| 14 | 5303285199 | Screw,phillips ,8-18 X 0.38 ,sq.recess ,truss Head |
|
- | |||||
| 15 | 5303303077 | Strap - Capacitor |
|
- | |||||
| 17 | 5304408778 | Cord-srv 230v/18ga Type C |
|
- | |||||
| 18 | 5303007754 | Screw, .138-32 X .188 |
|
- | |||||
| 35 | 3200761 | Spacer - Control Bulb |
|
- | |||||
| *41601 | 309111201 | Grommet-wires |
|
- |
