View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Cabinet Front/wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor
06 - Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

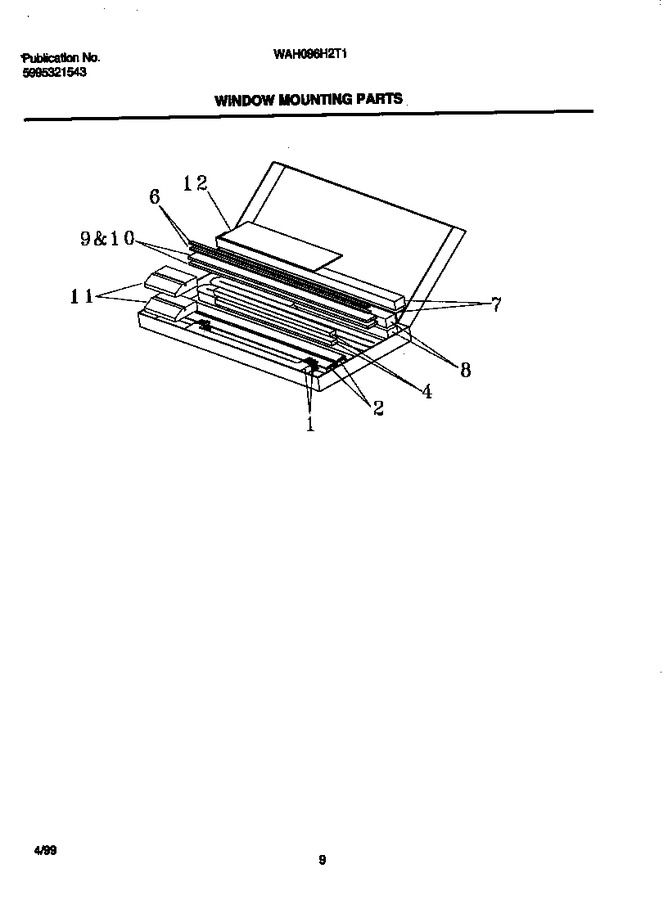

| 1 | 309628601 | Trim Frame-sides |
|
- | |||||
| 2 | 309628602 | Trim Frame-top & Bottom |
|
- | |||||
| 3 | 5304409303 | Kit-grounding Wire |
|
- | |||||
| 4 | 5304409304 | Block,tapered |
|
- | |||||
| 5 | 5303301038 | Seal-wrapper To Wrapper S/o |
|
- | |||||
| 6 | 5304409305 | Seal-cond End Bracket |
|
- | |||||
| 7 | 5304409306 | Seal-cond/rear Panel |
|
- | |||||
| 8 | 5304409307 | Seal-cond/rear Pnl,sides |
|
- | |||||
| 9 | 5304409308 | Seal-cond/rear Pnl,top & Bttm |
|
- | |||||
| 10 | 5304409309 | Seal-cond/rear Pnl,sides |
|
- | |||||
| 11 | 5304409310 | Block-chassis/cabinet |
|
- | |||||
| 13 | 5304409311 | Kit-grille Mounting |
|
- | |||||
| 15 | 309636001 | Kit-mounting-all Parts Above |
|
- |
