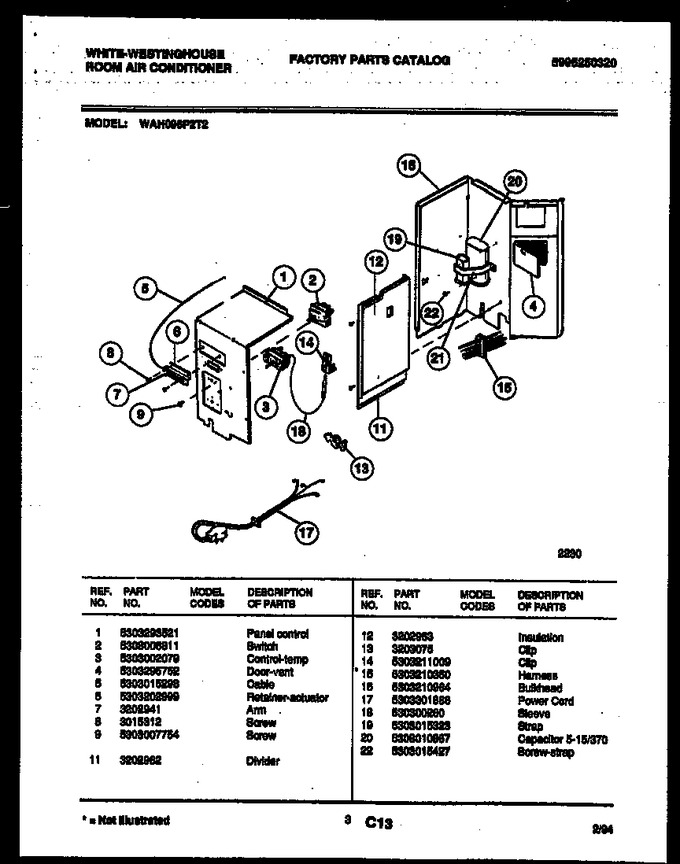

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303293521 | Panel-control |
|
- | |||||
| 2 | 5308006811 | Switch |
|
$ 33.65 | |||||
| 3 | 5303002079 | Control Temp |
|
- | |||||
| 4 | 5303295752 | Door-vent |
|
- | |||||
| 5 | 5303015298 | Cable |
|
- | |||||
| 6 | 5303202999 | Retainer - Actuator |
|
- | |||||
| 7 | 3202941 | Arm |
|
- | |||||
| 8 | 3015312 | Screw |
|
- | |||||
| 9 | 5303007754 | Screw |
|
- | |||||
| 11 | 3202962 | Divider |
|
- | |||||
| 12 | 3202963 | Insulation |
|
- | |||||
| 13 | 3203075 | Clip |
|
- | |||||
| 14 | 5303211009 | Clip |
|
- | |||||
| 15 | 5303210350 | Harness |
|
- | |||||
| 16 | 5303210984 | Bulkhead |
|
- | |||||
| 17 | 5303301886 | Power Cord |
|
- | |||||
| 18 | 530300260 | Sleeve |
|
- | |||||
| 19 | 5303015323 | Strap |
|
- | |||||
| 20 | 5308010867 | Capacitor 5-15/370 |
|
- | |||||
| 22 | 5303015427 | Screw-strap |
|
- |
