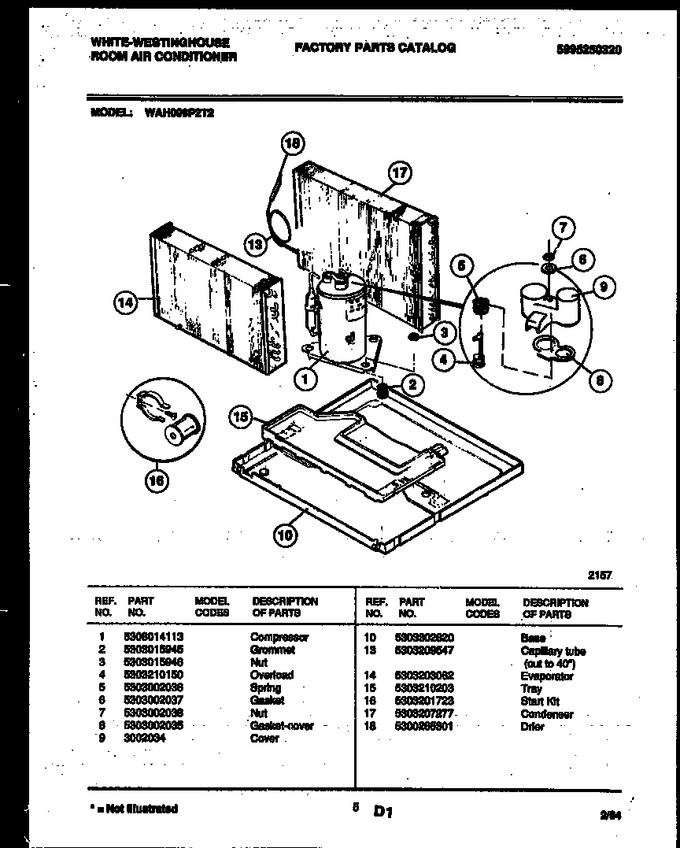

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308014113 | Compressor |
|
- | |||||
| 2 | 5303015945 | Grommet |
|
- | |||||
| 3 | 5303015946 | Nut |
|
- | |||||
| 4 | 5303210150 | Overload |
|
- | |||||
| 5 | 5303002036 | Spring |
|
- | |||||
| 6 | 5303002037 | Gasket |
|
- | |||||
| 7 | 5303002038 | Nut |
|
- | |||||
| 8 | 5303002035 | Gasket-cover |
|
- | |||||
| 9 | 3002034 | Cover |
|
- | |||||
| 10 | 5303302820 | Base |
|
- | |||||
| 13 | 5303209547 | Capillary Tube, Cut To 40`` |
|
- | |||||
| 14 | 5303203062 | Evaporator |
|
- | |||||
| 15 | 5303210203 | Tray |
|
- | |||||
| 16 | 5303201723 | Start Kit |
|
- | |||||
| 17 | 5303207277 | Condenser |
|
- | |||||
| 18 | 5300265301 | Drier |
|
