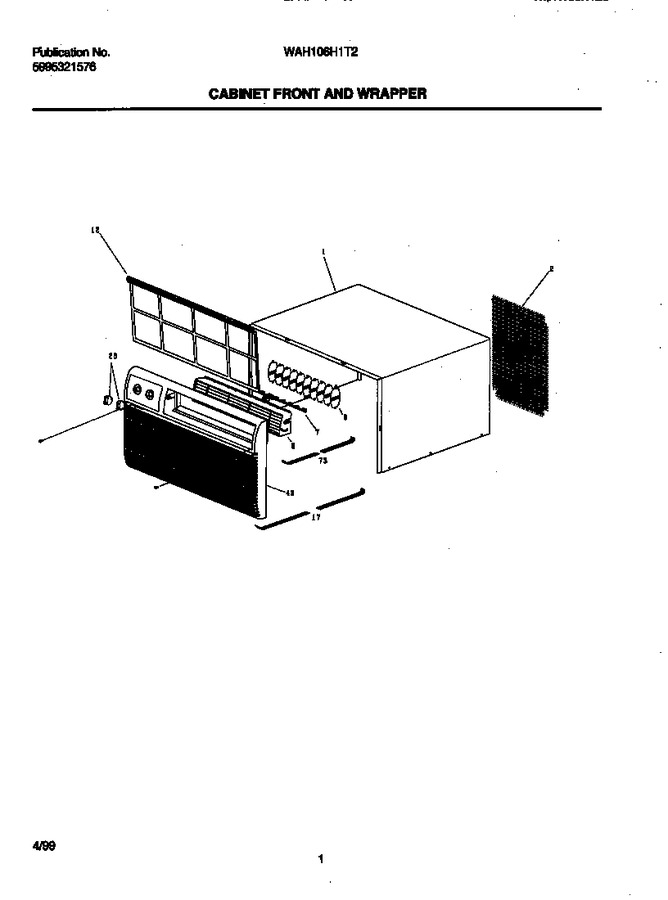

02 - Cabinet Front/wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor
06 - Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309627502 | Wrapper-u Bend 18.5 Bld |
|
- | |||||
| 2 | 309636101 | Screen-safety 18.5bld |
|
- | |||||
| 7 | 309324001 | Link |
|
- | |||||
| 8 | 309628001 | Horizontal Louver |
|
- | |||||
| 9 | 309628102 | +louver-vert 18.5bld 0060-y28r |
|
- | |||||
| 12 | 309628201 | Filter-molded Air 2005 Beige |
|
- | |||||
| 17 | 309629401 | Front Assy-18.5 Bld Wac |
|
- | |||||
| 20 | 5304404767 | Knob-control,(2) |
|
- | |||||
| 29 | 5304410881 | Screw-10-16 Phillips Hd. |
|
- | |||||
| 43 | 309631801 | Fnt/cntrl Lbl Asm-18.5bld Wac |
|
- | |||||
| 73 | 309629301 | Lver Assy-18.5bld Beige Wac |
|
- | |||||
| *67680 | 5304408740 | Panel-rear Plastic 18.5bld |
|
- |
