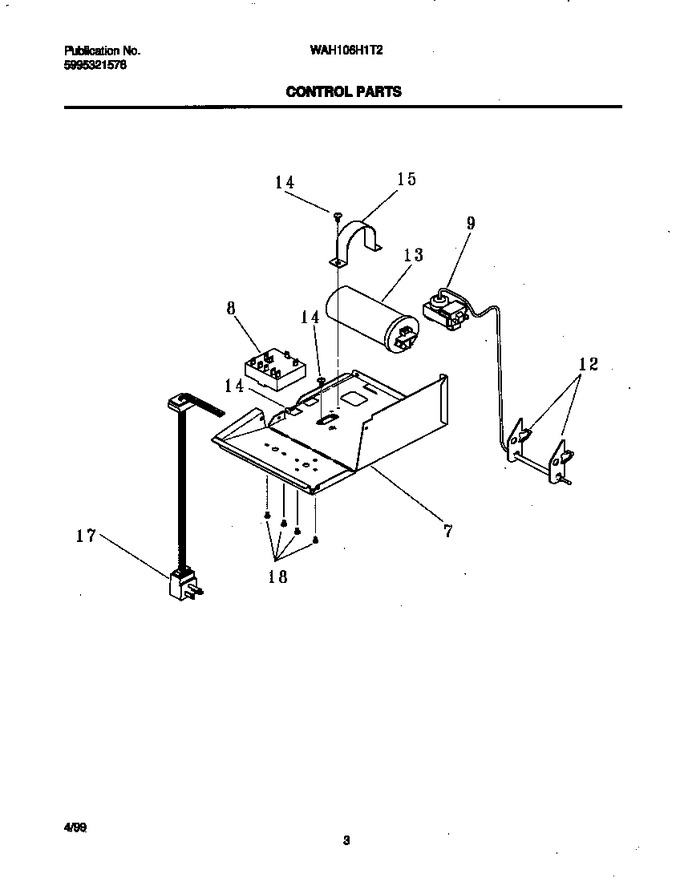

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 309628501 | Box-control 18.5tc Rot |
|
- | |||||
| 8 | 5303306427 | Switch-selector |
|
- | |||||
| 9 | 5303306428 | Control-temperature |
|
- | |||||
| 12 | 309329801 | Retaining Clip-sens Bulb |
|
- | |||||
| 13 | 309335304 | Capac-40+10/370 Kuk Kwang |
|
- | |||||
| 14 | 5303285199 | Screw,phillips ,8-18 X 0.38 ,sq.recess ,truss Head |
|
- | |||||
| 15 | 5303303077 | Strap - Capacitor |
|
- | |||||
| 17 | 5304408777 | Cord-srv 115v/16ga Type A |
|
- | |||||
| 18 | 5303007754 | Screw, .138-32 X .188 |
|
- | |||||
| 35 | 3200761 | Spacer - Control Bulb |
|
- | |||||
| *67681 | 309111201 | Grommet-wires |
|
- |
