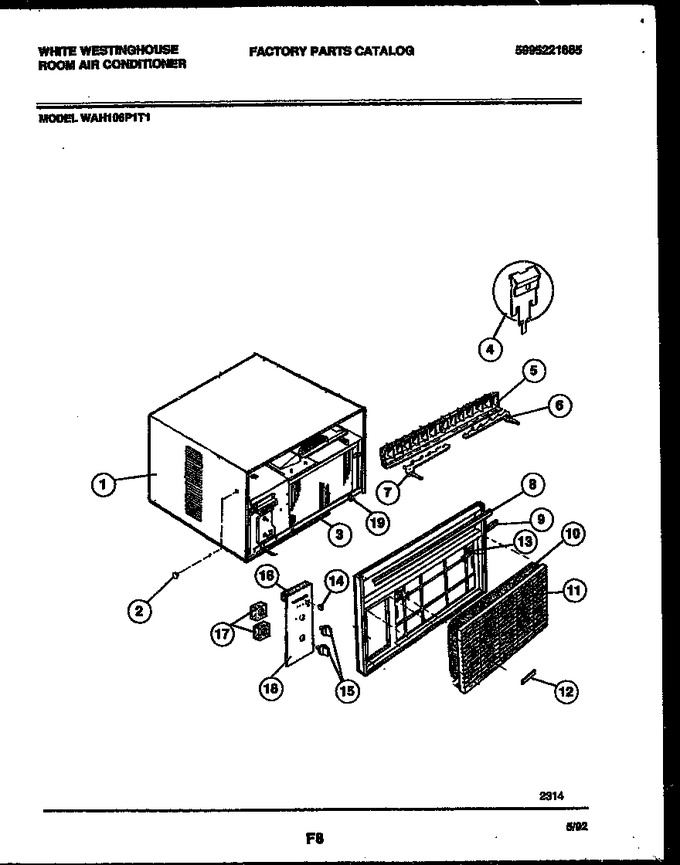

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207281 | Wrapper |
|
- | |||||
| 2 | 5303271902 | Plug Button |
|
- | |||||
| 3 | 5314949603 | Seal, Bottom |
|
- | |||||
| 4 | 5303001844 | Clip |
|
- | |||||
| 5 | 5303002458 | Louver W/ Link |
|
- | |||||
| 6 | 5303002164 | Link Rh |
|
- | |||||
| 7 | 5303002165 | Link-lh |
|
- | |||||
| 8 | 5303210983 | Front-complete |
|
- | |||||
| 9 | 5300301157 | Seal-mullion |
|
- | |||||
| 10 | 5303001809 | Filter |
|
- | |||||
| 11 | 5303210352 | Panel-front |
|
- | |||||
| 12 | 5300138101 | Nameplate |
|
- | |||||
| 13 | 5308008175 | Screw-front |
|
- | |||||
| 14 | 5303002189 | Knob-slide |
|
- | |||||
| 15 | 5300331902 | Knob Control |
|
- | |||||
| 16 | 5303001984 | Seal |
|
- | |||||
| 17 | 5303001775 | Spacer |
|
- | |||||
| 18 | 5303211945 | Dial Plate |
|
- | |||||
| 19 | 5308010914 | Clip-front Mtg |
|
- | |||||
| *41397 | 5303270147 | Trim-bottom |
|
- | |||||
| *41397 | 5303270145 | Trim-top |
|
- | |||||
| *41397 | 5303270146 | Trim-sides |
|
- | |||||
| 1A | 5303210207 | Grille Rear (non-illustrated) |
|
- | |||||
| 1B | 5303271448 | Nameplate-grille (non-illustrated) |
|
- |
