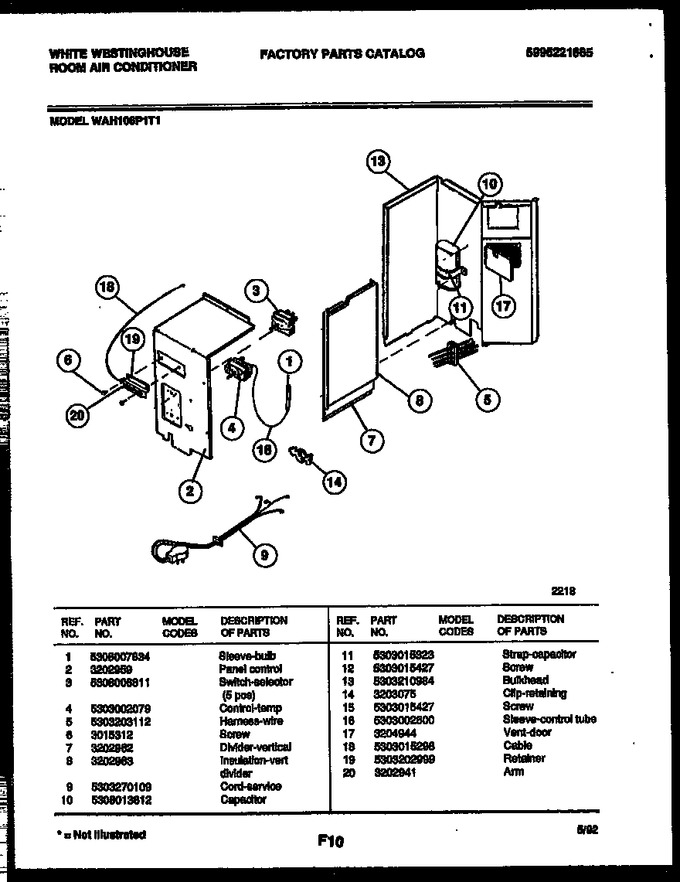

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308007834 | Sleeve-bulb |
|
- | |||||
| 2 | 3202959 | Panel-control |
|
- | |||||
| 3 | 5308006811 | Switch-selector (5 Pos) |
|
$ 33.65 | |||||
| 4 | 5303002079 | Control Temp |
|
- | |||||
| 5 | 5303203112 | Harness-wire |
|
- | |||||
| 6 | 3015312 | Screw |
|
- | |||||
| 7 | 3202962 | Divider-vertical |
|
- | |||||
| 8 | 3202963 | Insulation-vert Divider |
|
- | |||||
| 9 | 5303270109 | Cord-service |
|
- | |||||
| 10 | 5308013612 | Capacitor |
|
- | |||||
| 11 | 5303015323 | Strap-capacitor |
|
- | |||||
| 12 | 5303015427 | Screw |
|
- | |||||
| 13 | 5303210984 | Bulkhead |
|
- | |||||
| 14 | 3203075 | Clip-retaining |
|
- | |||||
| 15 | 5303015427 | Screw |
|
- | |||||
| 16 | 5303002600 | Sleeve-control Tube |
|
- | |||||
| 17 | 3204944 | Vent Door |
|
- | |||||
| 18 | 5303015298 | Cable |
|
- | |||||
| 19 | 5303202999 | Retainer |
|
- | |||||
| 20 | 3202941 | Arm |
|
- |
