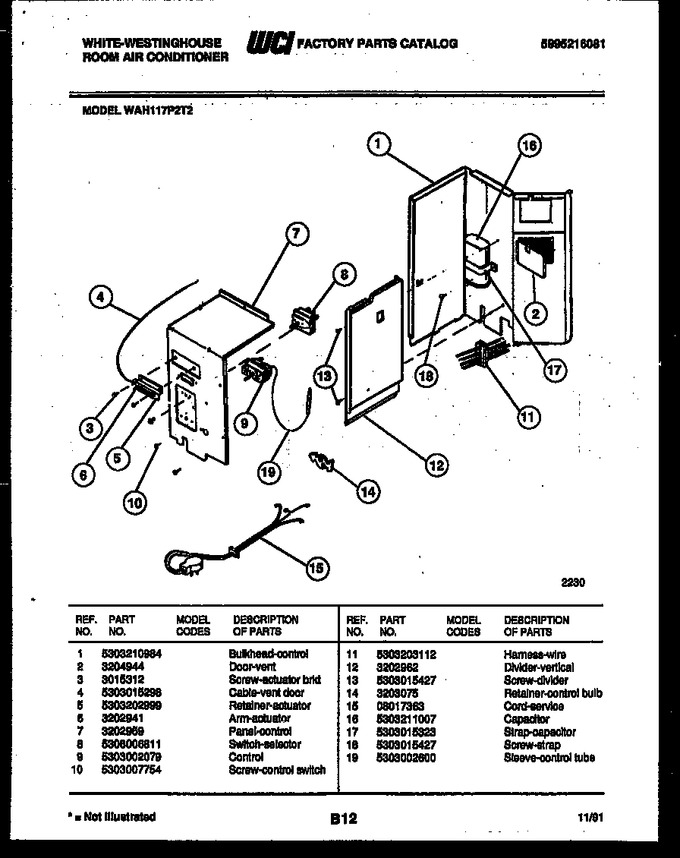

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210984 | Bulkhead - Control |
|
- | |||||
| 2 | 3204944 | Door-vent |
|
- | |||||
| 3 | 3015312 | Screw-actuator Brkt |
|
- | |||||
| 4 | 5303015298 | Cable - Vent Door |
|
- | |||||
| 5 | 5303202999 | Retainer - Actuator |
|
- | |||||
| 6 | 3202941 | Arm-actuator |
|
- | |||||
| 7 | 3202959 | Panel-control |
|
- | |||||
| 8 | 5308006811 | Switch-selector |
|
$ 33.65 | |||||
| 9 | 5303002079 | Control |
|
- | |||||
| 10 | 5303007754 | Screw-control Switch |
|
- | |||||
| 11 | 5303203112 | Harness-wire |
|
- | |||||
| 12 | 3202962 | Divider-vertical |
|
- | |||||
| 13 | 5303015427 | Screw - Divider |
|
- | |||||
| 14 | 3203075 | Retainer-control Bulb |
|
- | |||||
| 15 | 08017363 | Cord-service |
|
- | |||||
| 16 | 5303211007 | Capacitor |
|
- | |||||
| 17 | 5303015323 | Strap-capacitor |
|
- | |||||
| 18 | 5303015427 | Screw-strap |
|
- | |||||
| 19 | 5303002600 | Sleeve-control Tube |
|
- |
