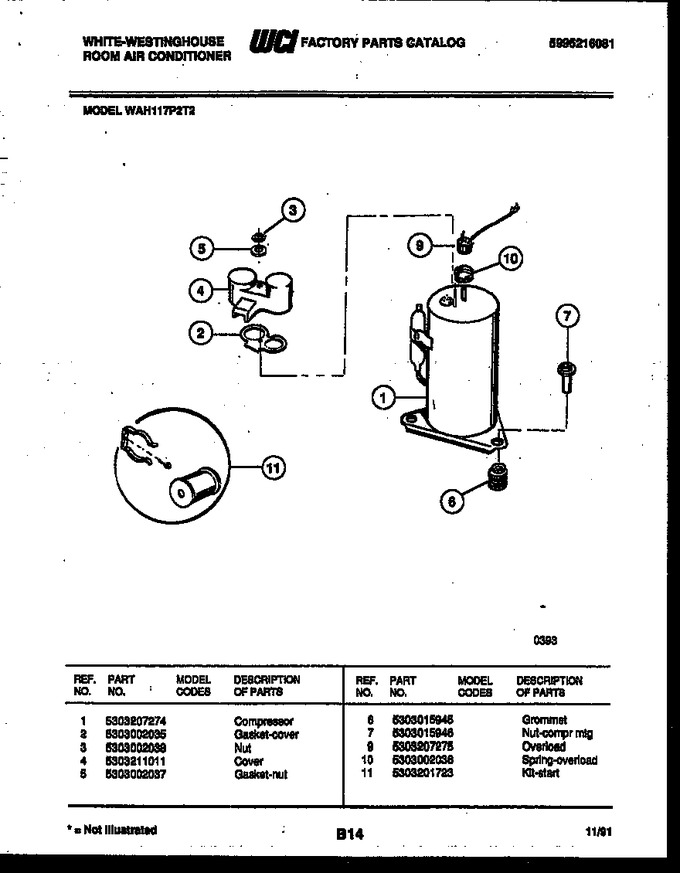

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207274 | Compressor |
|
- | |||||
| 2 | 5303002035 | Gasket-cover |
|
- | |||||
| 3 | 5303002038 | Nut |
|
- | |||||
| 4 | 5303211011 | Cover |
|
- | |||||
| 5 | 5303002037 | Gasket-nut |
|
- | |||||
| 6 | 5303015945 | Grommet |
|
- | |||||
| 7 | 5303015946 | Nut-compr Mtg |
|
- | |||||
| 9 | 5303207275 | Overload |
|
- | |||||
| 10 | 5303002036 | Spring-overload |
|
- | |||||
| 11 | 5303201723 | Kit-start |
|
- |
