View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover

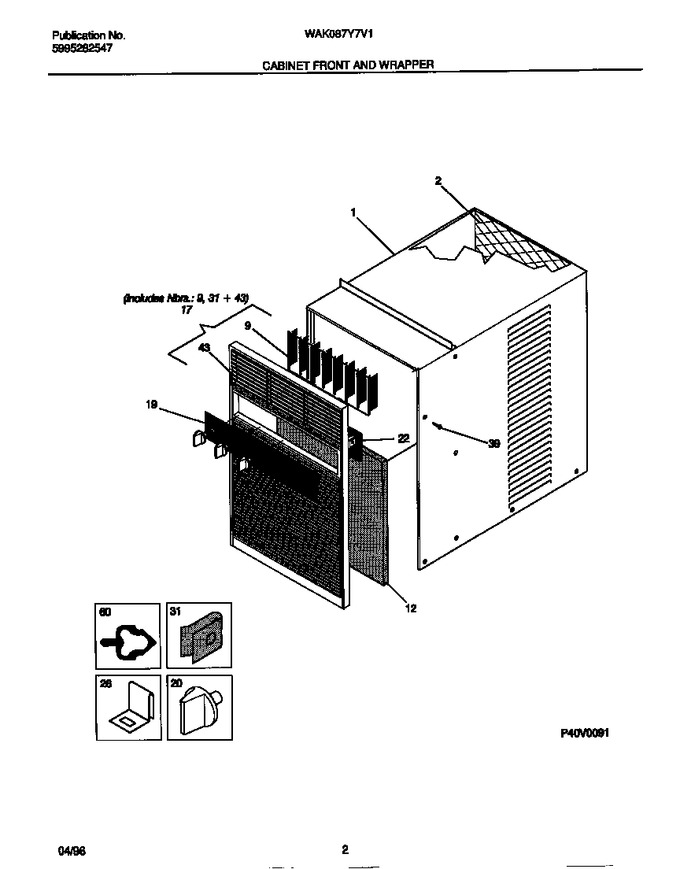

02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309615502 | Cabinet, With Insulation |
|
- | |||||
| 2 | 5303317604 | Grille,rear |
|
- | |||||
| 9 | 309611601 | Louver-vertical |
|
- | |||||
| 12 | 5303313954 | Filter |
|
$ 45.83 | |||||
| 17 | 309616501 | Front Complete |
|
- | |||||
| 19 | 309611401 | Dial Plate |
|
- | |||||
| 20 | 5300331902 | Knob Control |
|
- | |||||
| 22 | 5303317605 | Seal, Plate |
|
- | |||||
| 28 | 309105401 | Clip, Front-to-base, (2) |
|
- | |||||
| 31 | 5303286163 | Clip, U-type, No. 8 |
|
- | |||||
| 39 | 5303271346 | Screw, Truss Head, 8-18ab X 0.75 |
|
- | |||||
| 43 | 309613001 | Panel, Cabinet Front |
|
- | |||||
| 60 | 3203495 | Clip-filter, (2) |
|
- |
