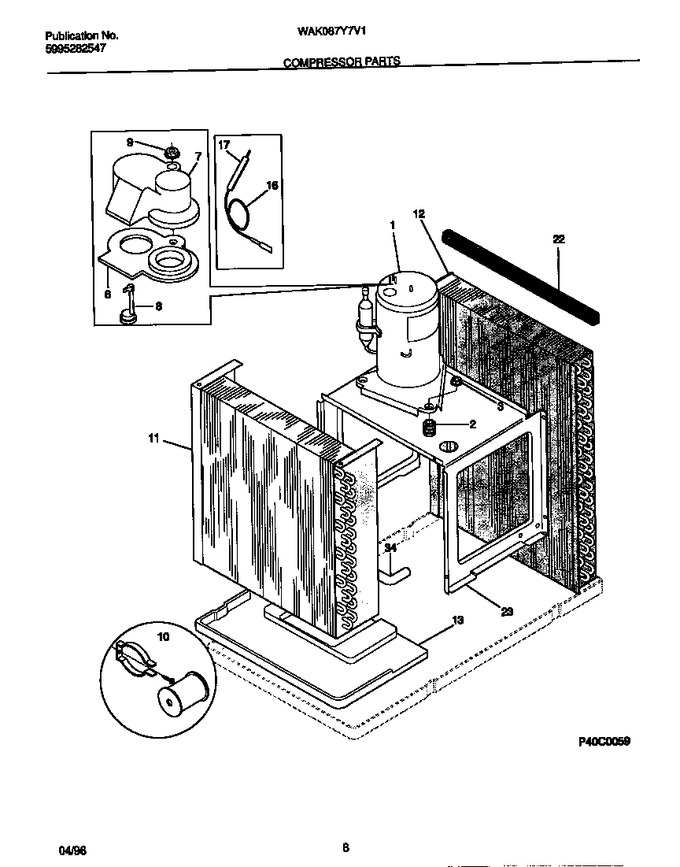

05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309616903 | Compressor |
|
- | |||||
| 2 | 5303015945 | Grommet Compressor (3) |
|
- | |||||
| 3 | 5303015946 | Nut,plastic ,compressor ,(3) |
|
- | |||||
| 6 | 3201668 | Gasket-cover |
|
- | |||||
| 7 | 3201669 | Cover-terminal |
|
- | |||||
| 8 | 5303317553 | Overload Protector |
|
- | |||||
| 9 | 3201670 | Nut-cover |
|
- | |||||
| 10 | 5303317601 | Start Assist Kit,compressor |
|
$ 148.05 | |||||
| 11 | 309617003 | Evaporator |
|
- | |||||
| 12 | 309617203 | Condenser |
|
- | |||||
| 13 | 309612501 | Tray-evaporator |
|
- | |||||
| 16 | 3203179 | Capillary Tube |
|
- | |||||
| 17 | 5300265301 | Drier-filter |
|
$ 284.30 | |||||
| 22 | 5303313964 | Seal,condenser ,upper |
|
- | |||||
| 23 | 309614104 | Base, Compressor |
|
- | |||||
| 34 | 309105501 | Hose-drain |
|
- |
