01 - Cover
02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:

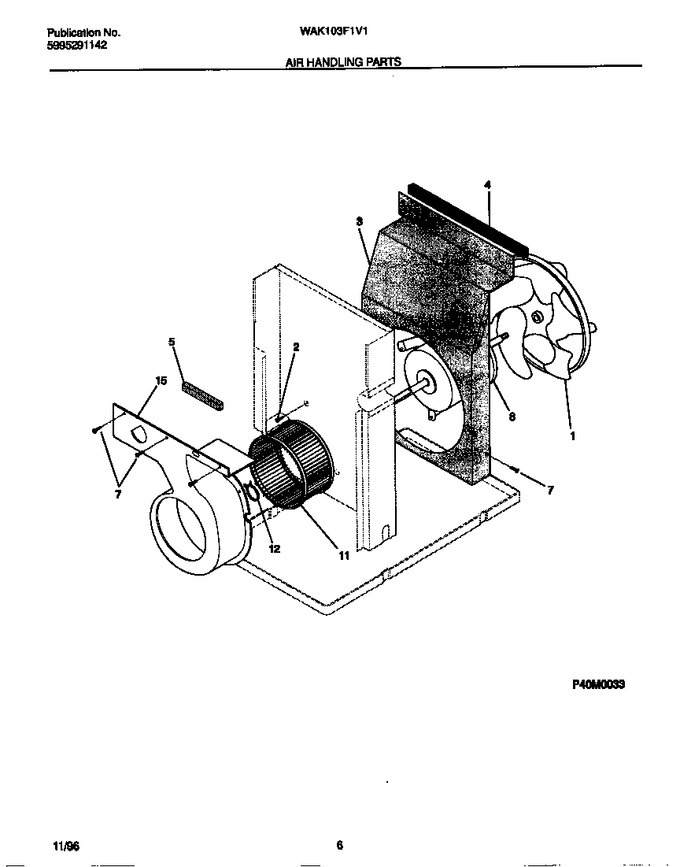

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309612401 | Fan Blade, With Clamp |
|
- | |||||
| 2 | 3202975 | Screw`10-16 X 0.72 ,square Drive |
|
- | |||||
| 3 | 309620501 | Housing-fan |
|
- | |||||
| 4 | 5303313964 | Seal,condenser ,upper |
|
- | |||||
| 5 | 5303316711 | Seal, Housing |
|
- | |||||
| 7 | 5303303691 | Screw, 8-18ab X 0.38 |
|
- | |||||
| 8 | 309617701 | Motor-fan |
|
- | |||||
| 11 | 309616801 | Blower Wheel |
|
- | |||||
| 12 | 5303012110 | Clamp-blower |
|
$ 8.14 | |||||
| 15 | 309606802 | Housing-blower |
|
- |
