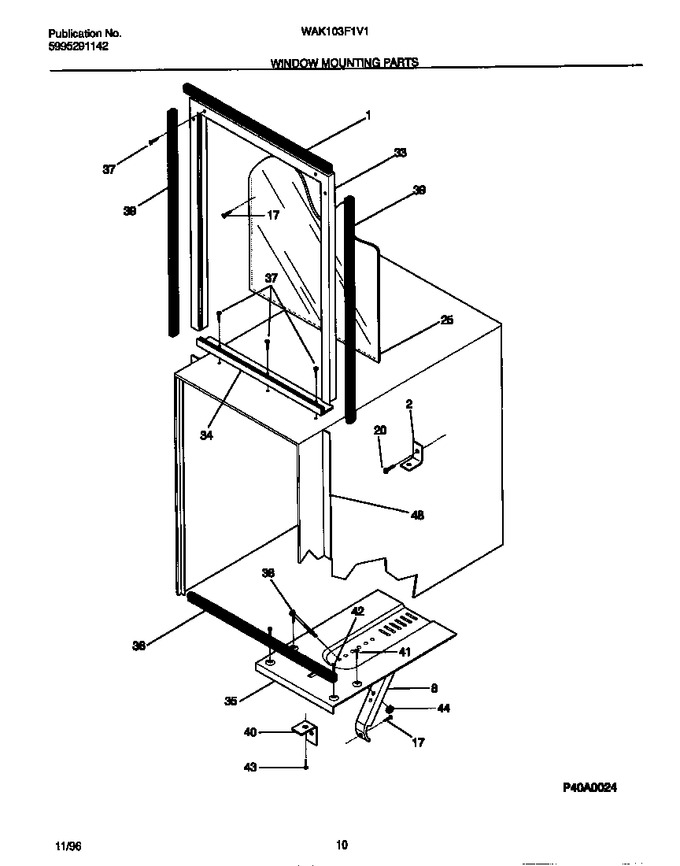

06 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303313968		Seal,frame ,top		Appelez-nous	-
2	5303211056		Bracket		Appelez-nous	-
8	5303319114		Bracket-support		Appelez-nous	-
10	3007759		Nut - Bracket		Appelez-nous	-
17	5308013771		Screw-wood,round Head ,8-15 X 0.750		Appelez-nous	-
20	5303295750		Screw, 8-18 X 0.750		Appelez-nous	-
25	5308047516		Panel-window,plastic		Appelez-nous	-
33	5303313971		Frame-window, Sliding		Appelez-nous	-
34	5303313965		Retainer-window Panel		Appelez-nous	-
35	5303302872		Plate-mounting, Unit		Appelez-nous	-
36	5308047524		Seal,mounting Plate		Appelez-nous	-
37	5308047558		Screw,pan Head `8-32d X 0.75 ,slotted		Appelez-nous	-
38	5308047562		Screw-adjusting,mounting Plate		Appelez-nous	-
39	5303313967		Seal,frame ,side ,(2)		Appelez-nous	-
40	5303302870		Bracket-safety		Appelez-nous	-
41	5300125233		Screw,pan Head `10-12a X 1.00 `slotted		Appelez-nous	-
42	5300507212		Screw,pan Head `10-12a X 1.75 ,slotted		Appelez-nous	-
43	5300507693		Screw,flat Head `10-12a X 2.50 `slotted		Appelez-nous	-
44	5300516543		Nut,hex Flange ,1/4-20		Appelez-nous	-
48	309305301		Channel-slide,(2)		Appelez-nous	-
*06440	309000903		Instructions,installation		Appelez-nous	-
