01 - Cover

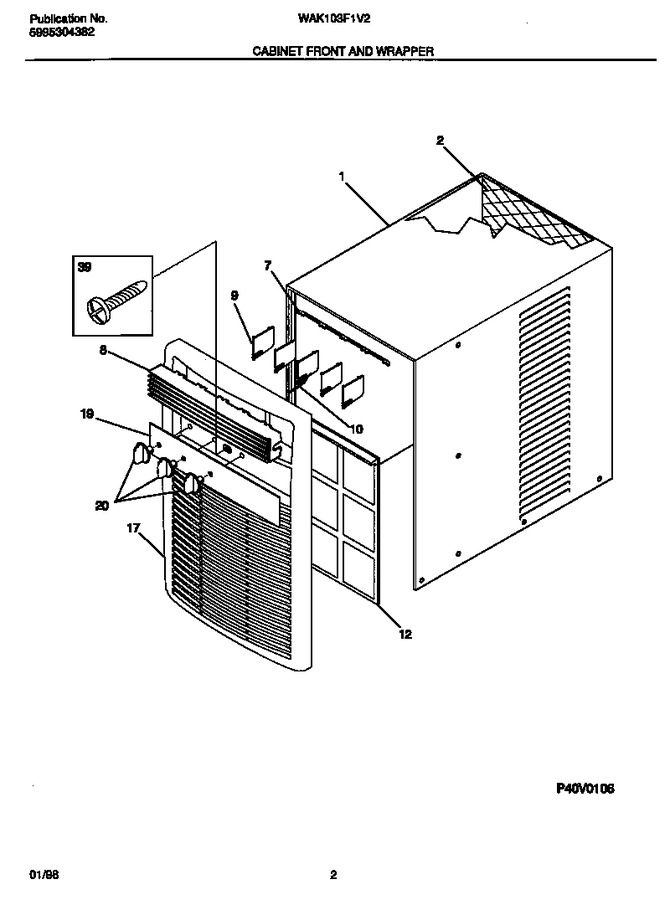

02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309622002 | Cabinet |
|
- | |||||
| 2 | 5303317604 | Grille,rear |
|
- | |||||
| 7 | 5303303089 | Link-louver |
|
- | |||||
| 8 | 309622202 | Louver,horizontal |
|
- | |||||
| 9 | 309622101 | Louver, Vertical, (4) |
|
- | |||||
| 10 | 309622102 | Louver, Vertical, W/handle |
|
- | |||||
| 12 | 309622302 | Filter |
|
- | |||||
| 17 | 309622402 | Front, Cabinet, Complete |
|
- | |||||
| 19 | 309622601 | Dial Plate |
|
- | |||||
| 20 | 309307002 | Knob-control |
|
- | |||||
| 39 | 3015312 | Screw, 8-18 X 0.47 |
|
- |
