01 - Cover
02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:

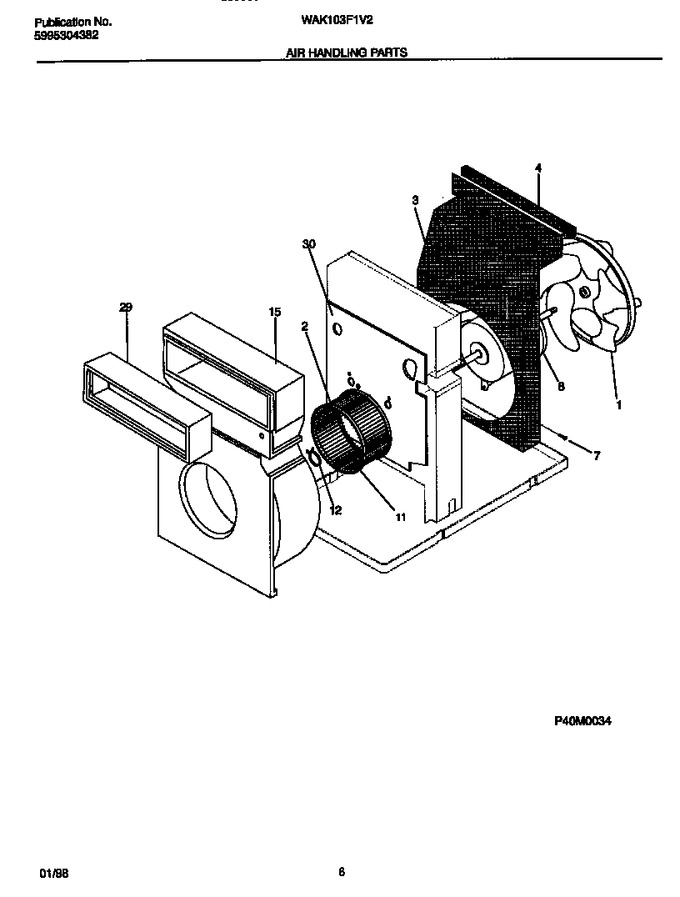

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309626001 | Fan Blade |
|
$ 54.71 | |||||
| 2 | 3202975 | Screw`10-16 X 0.72 ,square Drive |
|
- | |||||
| 3 | 309620501 | Housing-fan |
|
- | |||||
| 4 | 5303313964 | Seal,condenser ,upper |
|
- | |||||
| 7 | 3015312 | Screw, 8-18 X 0.47 |
|
- | |||||
| 8 | 309617703 | Motor-fan |
|
$ 136.29 | |||||
| 11 | 309625201 | Blower Wheel,plastic |
|
$ 50.05 | |||||
| 12 | 5303012110 | Clamp-blower |
|
$ 8.14 | |||||
| 15 | 309624801 | Housing-blower |
|
- | |||||
| 29 | 309624901 | Adaptor,housing-blower |
|
- | |||||
| 30 | 309624601 | Back Plate,housing-blower |
|
- |
